Product Introduction:

FMC-GEBX Series

10/100/1000M Single core WDM Internal Power Fiber Media converter

Overview

The FMC-GEBX series Media Converter complies with IEEE802.3z, IEEE802.3ab Standards It is designed to convert data signal between 10/100/1000 Base-T and 1000Base-X Gigabit Ethernet through one optical fiber. The converter is WDM single core fiber optic connector (transmitting-TX and Receiving -RX are in one fiber cable),

It supports 10/100/1000Base-T and 1000Base-X applications. The data signal converted by such high performance media converter can be transmitted up to 100km maximum by single-mode 9/125um fiber-optical cable from RJ45 Cooper Cat.5 network cable. It is support plug&play easy to use, auto detect and auto link up, no configuration is needs.

The converter is WDM single core fiber optic connector (transmitting-TX and Receiving -RX are in one fiber cable), and one RJ-45 Jacks and one power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power(PWR), Unshielded Twisted Paired Link/ UTP Activity(TP/ACT), Fiber Link/ Fiber Activity(FX/ACT), Full/Half duplex (FDX) and data rates(1000M) and (100M). It can be configured automatically for Full Duplex or Half Duplex operation.

It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, it is 100~265VAC input, and it is using in pair. The A type is TX1310nm/RX1550nm, the B type is TX1550/RX1310nm.

Specifications:

Mechanical Parameters

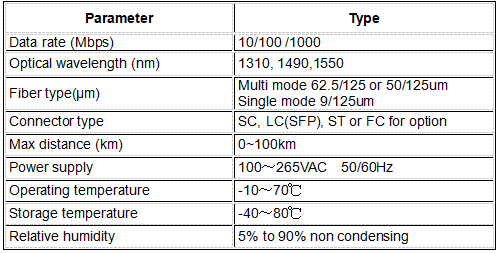

Performance introduction (Table 1)

Table 1: performance introduction

Features:

1). Support the IEEE802.3 fast Ethernet standard (10Mbps)

2). Support the IEEE802.3u Fast Ethernet standard(100Mbps)

3). Support the IEEE802.3ab and IEEE802.3z Gigabit Ethernet standard (1000Mbps)

4). Support the IEEE802.3x full-duplexes flow control

5). Support the IEEE802.1d spanning tree protocol

6). Support the IEEE802.1Q VLAN remark protocol

7). Full-duplexes, half-duplex auto negotiation

8). 10M/100M/1000M bit rate auto negotiation

9）100~240VAC wide range input to internal AC Power Supply, OVP, OCP and short protection functional.

10) 1 Fiber Interface Single core fiber Optic.

11). Automatic identification of MDI/MDI-X cross line.

12). Max.9000 bytes packet at cut-through mode, Max.2046bytes packet at store-and-forward mode.

13).low power consumption low heat, standalone type with 2.5W special communication power supply.

14). Transmission distance up to 100km, single core fiber cable

15) Very lower BER rate, <1/1000000000

16) Time Delay:

Store-and-forward mode:9.6us,

Cut-through mode: 0.9us

17) Life time>100,000 hours

Interface

RJ-45 interface

The transmission media adopts CAT5 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire

Fiber interface

SC/LC/ST/FC fiber interface is WDM single core fiber, TX and RX in one fiber. The media converter use by pair, the A(TX1310/RX1550nm) type must connect to B(TX1550/RX1310nm) type.

Connection

The network device (work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack of optical transceiver through twisted-pair. And the multi mode fiber is connected to SC/ST/LC/FC fiber interface of the optical transceiver. The corresponding LED is on for correct connection. (See the table below for the LED indicator lamp)

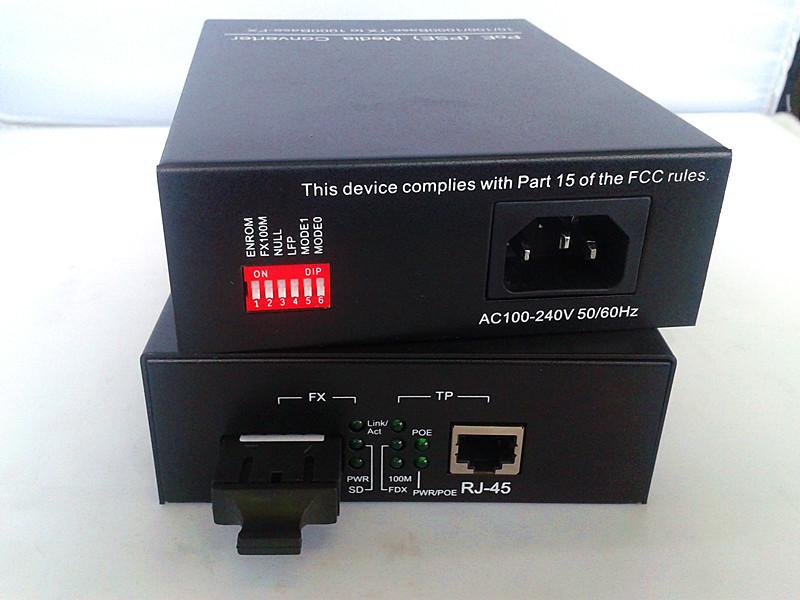

Appearance (Fig.2, Table2)

FMC-GEBX Series media Converter (Purchasing Directory)

X: Connector type

Features of Optical transmission:

Power Supply

AC Input: 100～240VAC  50/60Hz

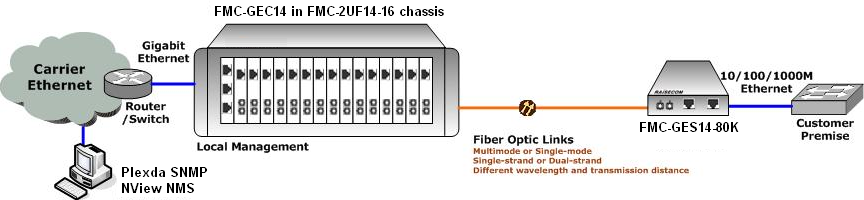

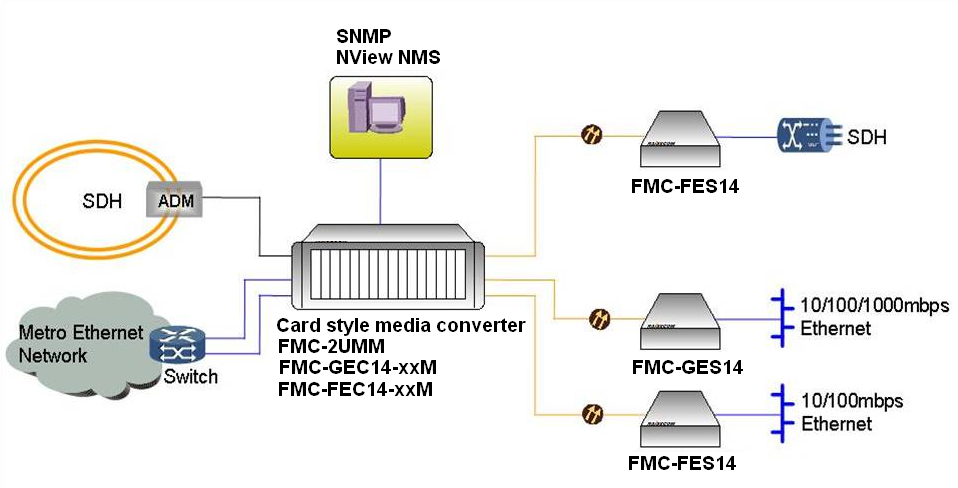

Application

Installing the Converter

For as a standalone unit:

Verify if the AC-DC adapter conforms to your country AC power requirement then

insert the power plug

Check the type of UTP (see fig.3)

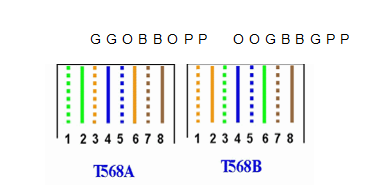

UTP complies with IEEE802.3 Standards, and has two types: T568A T568B.

NOTE: G: Green；O: Orange；B: Blue；P: Palm

Parallel cable: connect T568A to T568A , or T568B to T568B

Crossing-over cable:  connect T568A to T568B

TP port list (Fig.4)

 Installing

 TP port installing

Media converter auto-detect and connect the parallel lines RJ-45 port or the cross lines the RJ-45 port.

 Fiber port installing

Connect the fiber-optic transceiver on the media converter with the Single-mode SC/LC/ST/FC fiber connectors, and must using by pair, A type connecting to B type.

 Connect to switch power adaptor

 Check the appearance that converter instructions light

If connection right, the PWR, TP/ACT and 1000M LED is bright; Otherwise checking the Fiber port and TP port.

Note: Connecting to Router, Bridge or Switch, please refer to the device’s Technical Manual.
