Product Introduction:

FMC-FEBX-E

10/100M Single core WDM Fiber Media converter,External Power Serial

Description:

The FMC-FEBX-E Series TX to FX Network media Converter is a Fast Ethernet media converter that translates transmission signals from a twisted-pair 100BASE-TX cable to 100BASE-FX fiber optic cable. It extends network data transmission distances beyond the 100 meters limitation distances of copper wire up to 100 kilometers by using Single Mode fiber optic model. The 100BaseTX-to-FX Media Converter is typically used to connect Fast Ethernet devices, such as 100Base-TX Hubs, at long distance.

The converter is WDM single core fiber optic connector (transmitting-TX and Receiving -RX are in one fiber cable), and one RJ-45 Jacks, internal power supply for option. Six LED indicators are built –in for easy diagnosing and monitoring the status of Power(PWR), Unshielded Twisted Paired activity link(Link/ACT), Fiber activity link(Link/ACT), Full/Half duplex(FDX), Fiber link up(FX), 100Base-TX link up (100) data rate. It can be configured automatically for full duplex or half duplex and data rate operation.

It is compact, cost-effective, low dissipative, high reliable and stable. It is external power supply, +5VDC input , and it is using in pair. The A type is TX1310nm/RX1550nm, the B type is TX1550/RX1310nm.

Features

•Supports IEEE 802.3 10 Base-T, 802.3u,100Base-TX, 100Base-FX protocols

•Support IEEE 802.1Q VLAN TAG, Spanning Tree standard.

•Auto Negotiate 10/100M

•Auto Half/Full Duplex data mode

•Auto MDI/MDIX provides automatic cross

• Transmission distance up to 100km, single core fiber cable.

•1 Fiber Interface Single core fiber Optic.

• Support over-sized packets up to 1600Bytes.

•+5VDC input,External power.

•Support IEEE802.1p QOS PRI protocol

•Support using for 14solts 19inch chassis rack

•SC, LC, FC fiber connector for option

•Black, hoary, silvery shell color for option

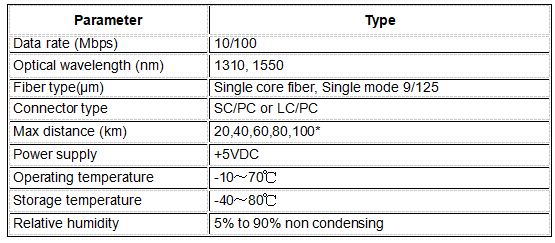

Technical Parameters

Mechanical Parameters

Performance Specification

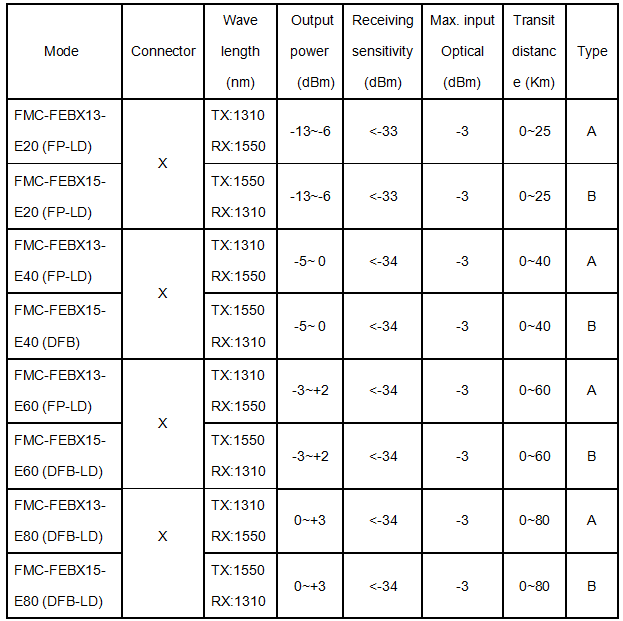

Features of Optical transmission:

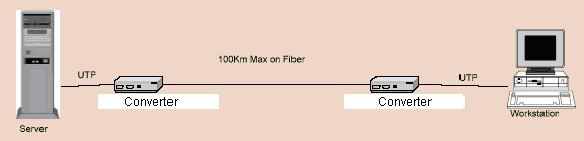

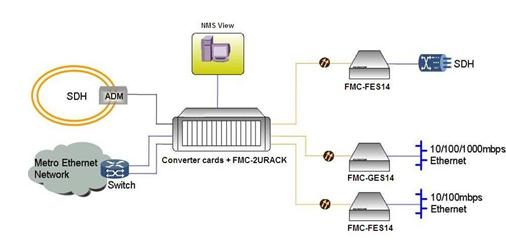

Application:

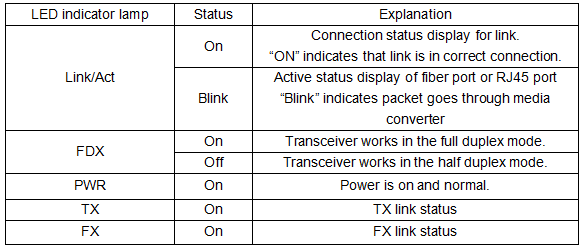

Indicators

Six indicators in the front panel of the converter:
