Product Introduction:

FMC-GES14 series

10/100/1000BASE-TX to 1000BASE-X Gigabit Fiber Media Converter (Internal Power supply)

Overview:

The FMC-GES14 series Media Converter complies with IEEE802.3z, IEEE802.3ab Standards It is designed to convert data signal between 10/100/1000 Base-T and 1000Base-SX Gigabit Ethernet.

It supports 10/100/1000Base-T and 1000Base-X applications. The data signal converted by such high performance media converter can be transmitted up to 100km maximum by single-mode 9/125um fiber-optical cable from RJ45 Cooper Cat.5 network cable.

The Converter is equipped with two fiber optic connectors (One for transmitting-TX and another

for receiving-RX) and one RJ-45 Jacks and one power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power(PWR), Unshielded Twisted Paired Link/ UTP Activity(TP/ACT), Fiber Link/ Fiber Activity(FX/ACT), Full/Half duplex (FDX) and data rates(1000M) and (100M). It can be configured automatically for Full Duplex or Half Duplex operation.

It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, it is 100~265VAC input to Internal power supply.

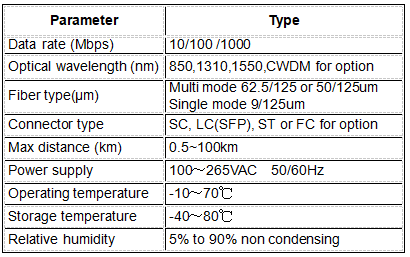

performance introduction:

Features:

1). Support the IEEE802.3 fast Ethernet standard (10Mbps)

2). Support the IEEE802.3u Fast Ethernet standard(100Mbps)

3). Support the IEEE802.3ab and IEEE802.3z Gigabit Ethernet standard (1000Mbps)

4). Support the IEEE802.3x full-duplexes flow control

5). Support the IEEE802.1d spanning tree protocol

6). Support the IEEE802.1Q VLAN remark protocol

7). Full-duplexes, half-duplex auto negotiation

8). 10M/100M/1000M bit rate auto negotiation

9）100~265VAC wide range input to internal AC Power Supply, OVP, OCP and short protection functional.

10). Automatic identification of MDI/MDI-X cross line.

11). Max.9000 bytes packet at cut-through mode, Max.2046bytes packet at store-and-forward mode.

12).low power consumption low heat, standalone type with special communication power supply.

13). Support LFP function.

14) Very lower BER rate, <1/1000000000

15) Time Delay:

Store-and-forward mode:9.6us,

Cut-through mode: 0.9us

16) Life time>100,000 hours

17). In conformity to safety code of FCC, CE certification.

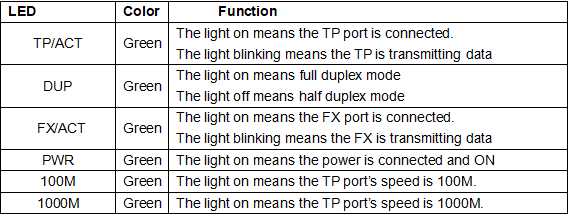

LED performance:

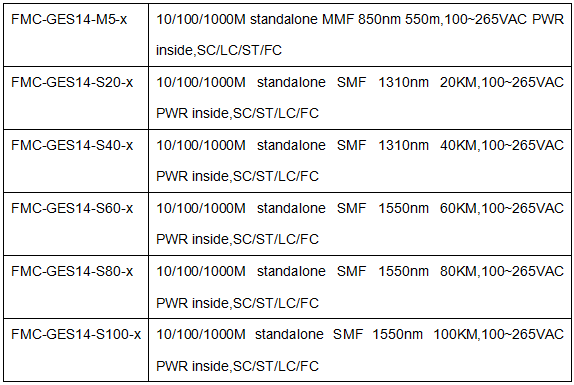

FMC-GES14Series media Converter (Purchasing Directory):

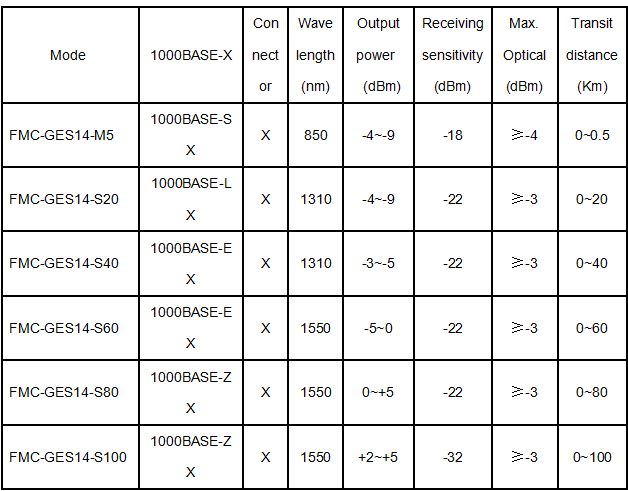

Features of Optical transmission:

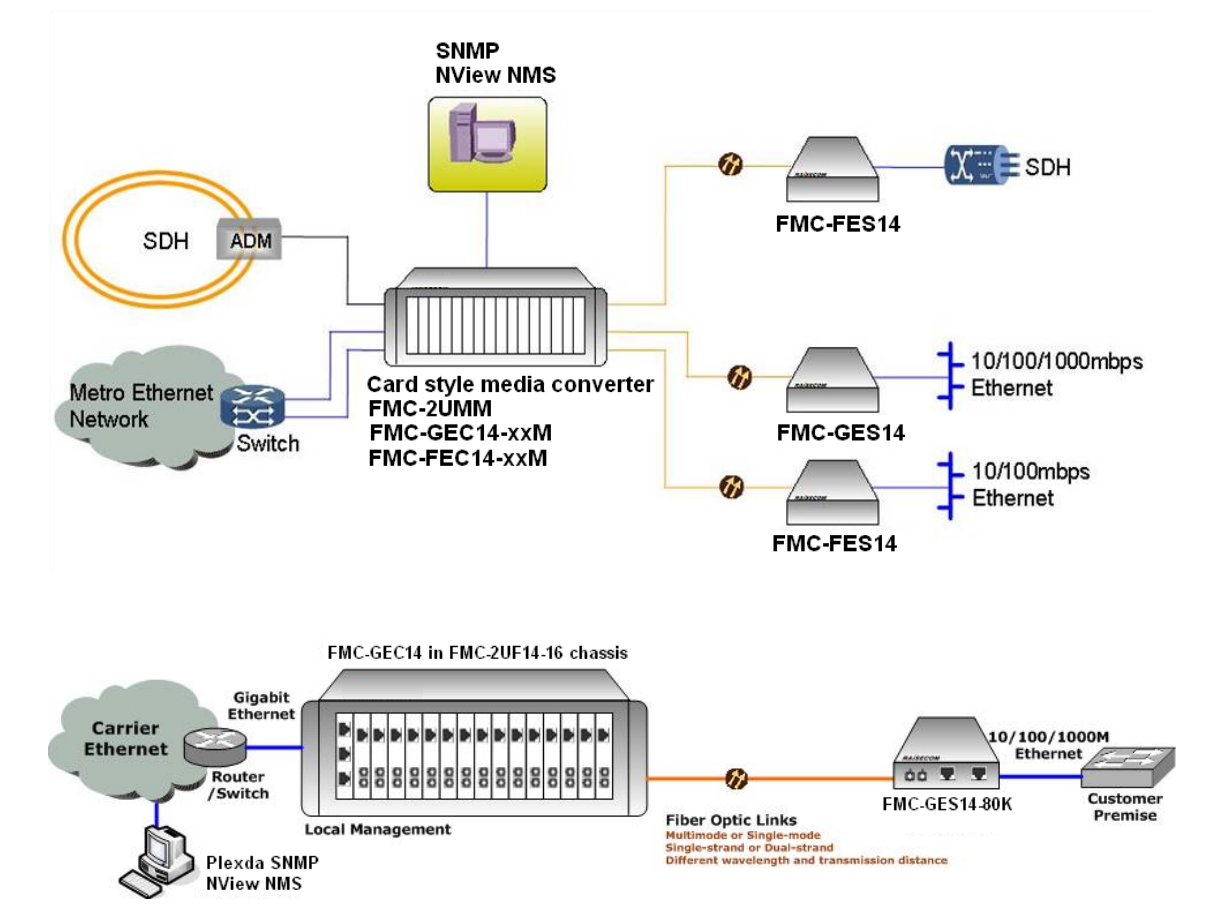

Application：
