Product Introduction:

FMC-FE14S-E Series

10/100M Dual Fibers External Power Supply Media converter

Description:

The FMC-FEE Series TX to FX Network media Converter is a Fast Ethernet media converter that translates transmission signals from a twisted-pair 100BASE-TX cable to100BASE-FX fiber optic cable. It extends network data transmission distances beyond the 100 meters limitation distances of copper wire up to 120 kilometers by using Single Mode fiber optic model. The 100BaseTX-to-FX Media Converter is typically used to connect

Fast Ethernet devices, such as 100Base-TX Hubs, at long distance.

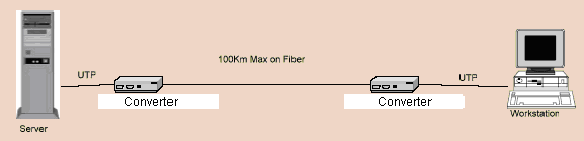

The 100BaseTX-to-FX Media Converter will connect servers or workstations located up to 100 kilometers from each other.

The converter is single core fiber optic connector (transmitting-TX and Receiving -RX are in one fiber cable), and one RJ-45 Jacks, external or internal power supply for option. Six LED indicators are built –in for easy diagnosing and monitoring the status of Power(PWR), Unshielded Twisted Paired activity link(Link/ACT), Fiber activity link(Link/ACT), Full/Half duplex(FDX), Fiber link up(FX), 100Base-TX link up (100) data rate. It can be configured automatically for full duplex or half duplex and data rate operation.It is compact, cost-effective, low dissipative, high reliable and stable. It issupport using in 14solts chassis rack, External power supply , +5VDC input..

Features

•Supports IEEE 802.3 10 Base-T, 802.3u,100Base-TX, 100Base-FX protocols

•Support IEEE 802.1Q VLAN TAG, Spanning Tree standard.

•Auto Negotiate 10/100M

•Auto Half/Full Duplex data mode

•Auto MDI/MDIX provides automatic cross

• Transmission distance up to 120km.

•TX/RX Dual fibers.

• Support over-sized packets up to 1600Bytes.

•External power supply , +5VDC input, support use in 19inch 14solts chassis rack.

•Support IEEE802.1p QOS PRI protocol

•SC, LC, FC , ST fiber connector for option

Technical Parameters

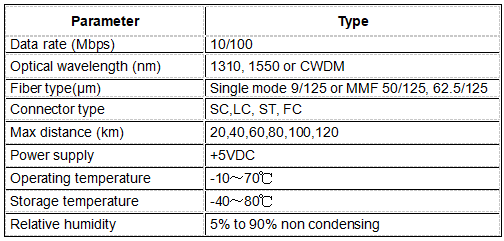

Mechanical Parameters

Performance Specification

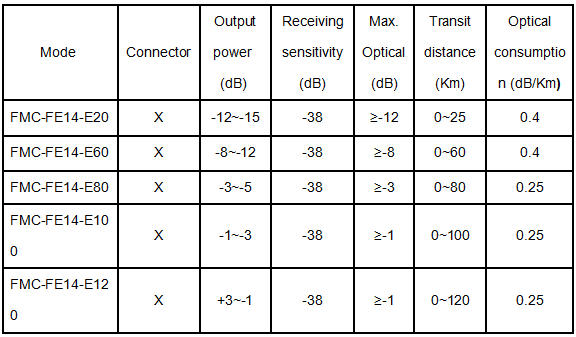

Features of Optical transmission:

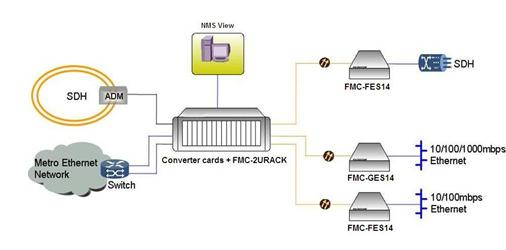

Application:

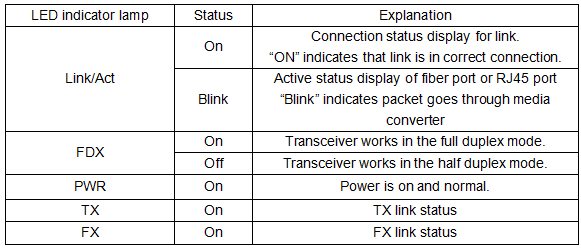

Indicators

Six indicators in the front panel of the converter:
