Product Introduction:

FMC-GE8213-MINI Series

10/100/1000BASE-TX to 1000BASE-X(SFP)

Gigabit Ethernet Fiber Media Converter

1. Overview

The FMC-GE8213-MINI series Media Converter complies with IEEE802.3z, IEEE802.3ab Standards It is designed to convert data signal between 10/100/1000 Base-TX and 1000Base-X(SFP) Gigabit Ethernet.

It supports 10/100/1000Base-T and 1000Base-X applications. The data signal converted by such high performance media converter can be transmitted up to 100km maximum by single-mode 9/125um fiber-optical cable from RJ45 Cooper Cat.5 or Cat.6 network cable.

The Converter is one SFP, one RJ-45 Jacks and one power supply receptacle. LEDs indicators are built-in for easy diagnosing and monitoring the status, it is mini designed for easy install and application.  5~12VDC wide range input.

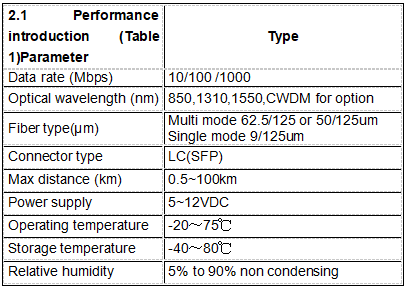

2. Specifications:

Mechanical Parameters

2.2 Features:

1). Support the IEEE802.3 fast Ethernet standard (10Mbps)

2). Support the IEEE802.3u Fast Ethernet standard(100Mbps)

3). Support the IEEE802.3ab and IEEE802.3z Gigabit Ethernet standard (1000Mbps)

4). Full-duplexes, half-duplex auto negotiation

5). 10M/100M/1000M bit rate auto negotiation

6）5~12VDC input by external power adapter

7). Automatic identification of MDI/MDI-X cross line.

8). Max.9000 bytes packet at cut-through mode, Max.2046bytes packet at store-and-forward mode.

9).low power consumption low heat.

10) Very lower BER rate, <1/1000000000

11) Time Delay:

Store-and-forward mode:9.6us,

Cut-through mode: 0.9us

12). In conformity to safety code of FCC, CE certification.

2.3.1 Interface

RJ-45 interface

The transmission media adopts Cat5 or Cat6 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire

Fiber interface

LC fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the two sets of optical transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely "TX-RX", "RX-TX" (direct butting for single optical fiber).

2.3.2. Connection

The network device (work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack, and the  fiber is connected to SFP optical transceiver. The corresponding LED is on for correct connection. (See the table below for the LED indicator lamp)

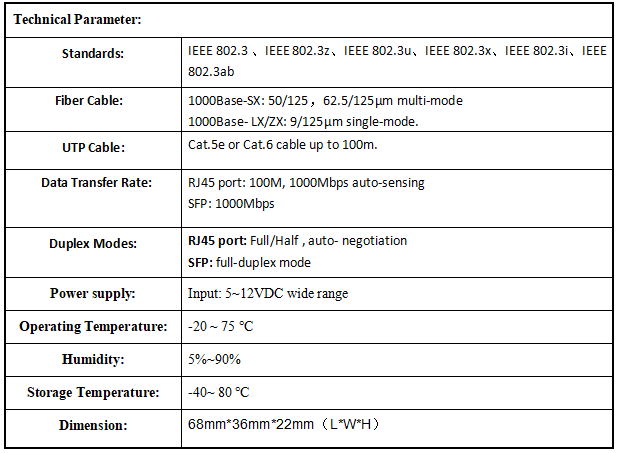

3. Specifications
