Product Introduction:

FMC-GES14-P Series

10/100/1000M POE (PSE) Media Converter

FMC-GES14-P series is a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).

The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

Key Features

· 10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion

· IEEE802.3at / IEEE802.3af PoE PSE compatible

· Built-in AC/DC power supply

· Over-current protection

· choice of SC, LC, BiDi or other connectors for multimode and singlemode

· DIP switch to set different configurations

· LFP (Link Fault Pass-through) support

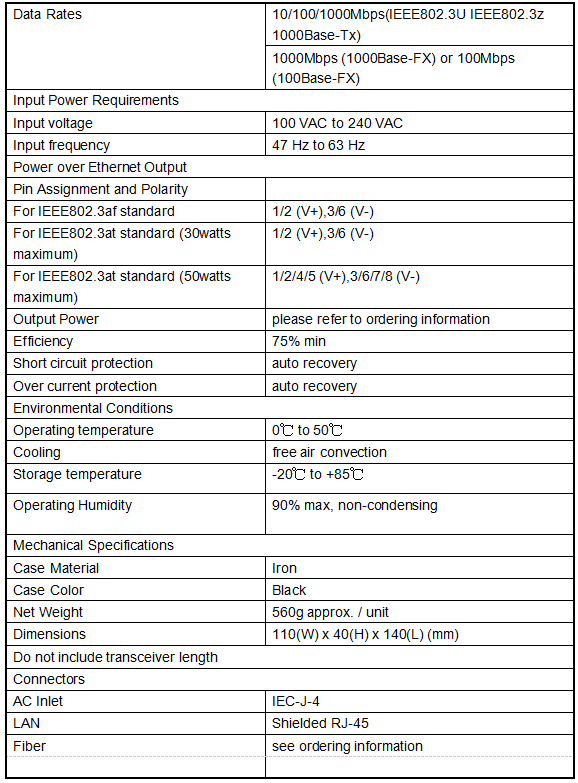

Specifications

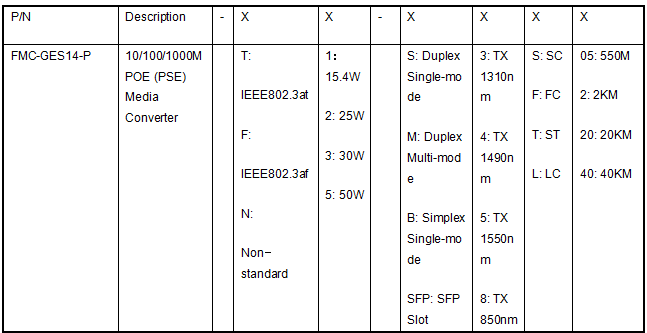

Ordering Information
