FMC-FES Series 10/100M Dual Fiber Internal Power supply Standalone Fiber Media converter
Product Introduction:

FMC-FES Series

10/100M Dual Fiber Internal Power supply Standalone Fiber Media converter

Description:

The FMC-FESseries TX to FX Network media Converter is a Fast Ethernet media converter that translates transmission signals from a twisted-pair 100BASE-TX cable to100BASE-FX fiber optic cable. It extends network data transmission distances beyond the 100 meters limitation distances of copper wire up to 120 kilometers by using Single Mode fiber optic model. The 100BaseTX-to-FX Media Converter is typically used to connect FastEthernet devices, such as 100Base-TX Hubs, at long distance.

The 100BaseTX-to-FX Media Converter will connect servers or workstations located up to 100 kilometers from each other.

The converter is single core fiber optic connector (transmitting-TX and Receiving -RX are in one fiber cable), and one RJ-45 Jacks, external or internal power supply for option. Six LED indicators are built –in for easy diagnosing and monitoring the status of Power(PWR), Unshielded Twisted Paired activity link(Link/ACT), Fiber activity link(Link/ACT), Full/Half duplex(FDX), Fiber link up(FX), 100Base-TX link up (100) data rate. It can be configured automatically for full duplex or half duplex and data rate operation.It is compact, cost-effective, low dissipative, high reliable and stable. It is used in standalone, power supply inside, 100~260VAC wide rang input..

Features

•Supports IEEE 802.3 10 Base-T, 802.3u,100Base-TX, 100Base-FX protocols

•Support IEEE 802.1Q VLAN TAG, Spanning Tree standard.

•Auto Negotiate 10/100M

•Auto Half/Full Duplex data mode

•Auto MDI/MDIX provides automatic cross

• Transmission distance up to 120km.

•TX/RX Dual fibers.

• Support over-sized packets up to 1600Bytes.

•Power supply inside, 100~260VAC input, use in standalone..

•Support IEEE802.1p QOS PRI protocol

•SC, LC, FC , ST fiber connector for option

Technical Parameters

Mechanical Parameters


Performance Specification

Parameter

Type

Data rate (Mbps)

10/100

Optical wavelength (nm)

1310, 1550 or CWDM

Fiber type(μm)

Single mode 9/125 or MMF 50/125, 62.5/125

Connector type

SC,LC, ST, FC

Max distance (km)

20,40,60,80,100,120

Power supply

100～265VAC  50/60Hz

Operating temperature

-10～70℃

Storage temperature

-40～80℃

Relative humidity

5% to 90% non condensing

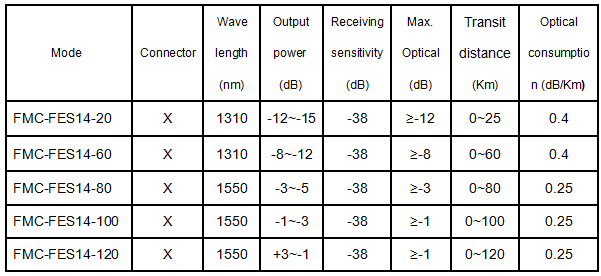

Features of Optical transmission:


Application:

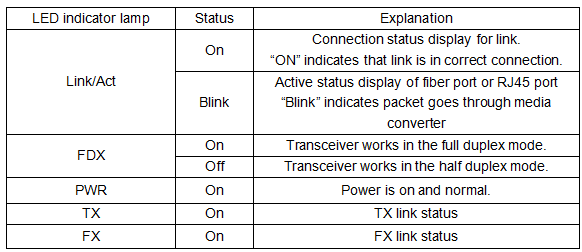

Indicators

Six indicators in the front panel of the converter:


Ethernet port (NODE / HUB)

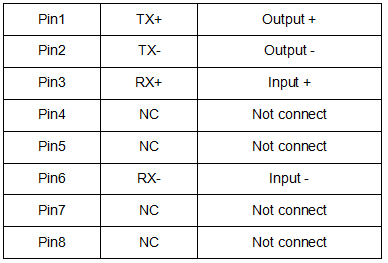

Supports auto MDI/MDIX crossover, the pin definition of RJ-45:
