Product Introduction:

FMC-GES14-E

10/100/1000Base-T to 1000Base-XFiber Media Converters

( External Power Supply)

Highlights

Compact Form Factor

Small footprint allows it to be installed anywhere,   it can support standalone used and install on a rack chassis for centralized management.

Connect Over Longer Distances

Send a fibre signal over a variety of distances by installing your choice of SFP modules, up to support 120km.

Reliable Technology

Adhere to industry standards and are compliant with 802.3u & 802.3x for plug-&-play convenience

Features

Max.2046bytes packet at store-and-forward mode, Max.9K bytes packet at cut-through mode

Support the IEEE802.3 fast Ethernet standard (10Mbps)

Support the IEEE802.3u Fast Ethernet standard(100Mbps)

Support the IEEE802.3ab and IEEE802.3z Gigabit Ethernet standard (1000Mbps)

Support the IEEE802.3x full-duplexes flow control

Support the IEEE802.1d spanning tree protocol

Support the IEEE802.1Q VLAN remark protocol

Full-duplexes, half-duplex auto negotiation

10M/100M/1000M bit rate auto negotiation

+5~12VDC wide range input power.

High Performance

Cut-Through traffic forwarding

Low latency

Variety

Allows for Gigabit speeds and a wide array of SFP modules

Standalone Convenience

Control costs by buying only the equipment your organisation needs

Powerful Ports

Auto MDI/MDIX

Auto-Negotiation

Half-Duplex and Full-Duplex at 10/100 Mbps, Full-Duplex at 1000Mbps

Description

10/100/1000Base-T to SFP Standalone Media Converter turn an Ethernet connection into fibre, allowing for long distance connections. It supports 10/100/1000Base-T and 1000Base-X applications. The data signal converted by such high performance media converter can be transmitted up to 120km maximum by single-mode 9/125um fiber-optical cable from RJ45 Cooper Cat.5 network cable.

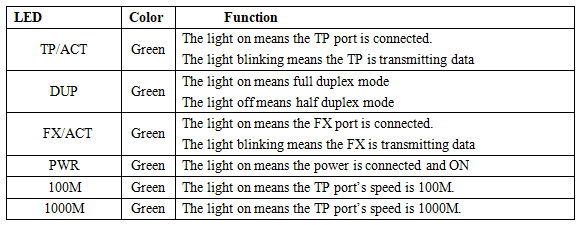

The converter has Six LEDs indicators are built-in for easy diagnosing and monitoring the status of power(PWR), Unshielded Twisted Paired Link/ UTP Activity(TP/ACT), Fiber Link/ Fiber Activity(FX/ACT), Full/Half duplex (FDX) and data rates(1000M) and (100M). It can be configured automatically for Full Duplex or Half Duplex operation.

It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in 19inch 2U 14solts chassis rack applications, or it can be used standalone applications also.

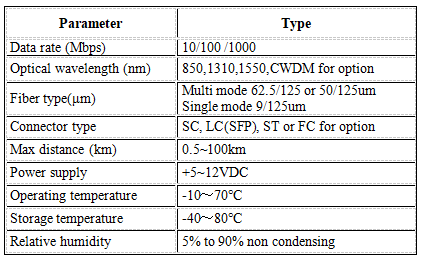

performance introduction:

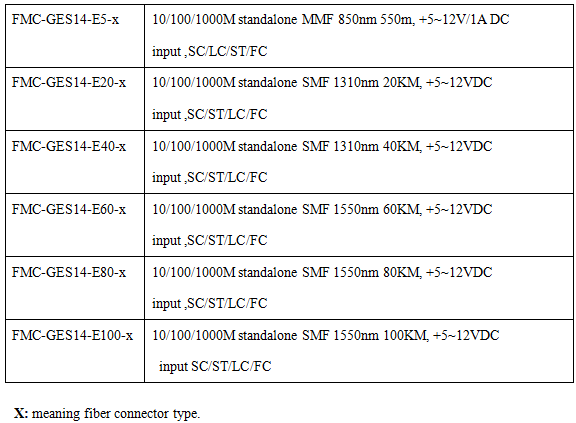

FMC-GES14Series media Converter (Purchasing Directory):

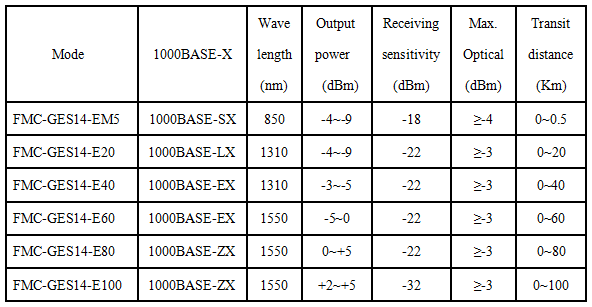

Features of Optical transmission:

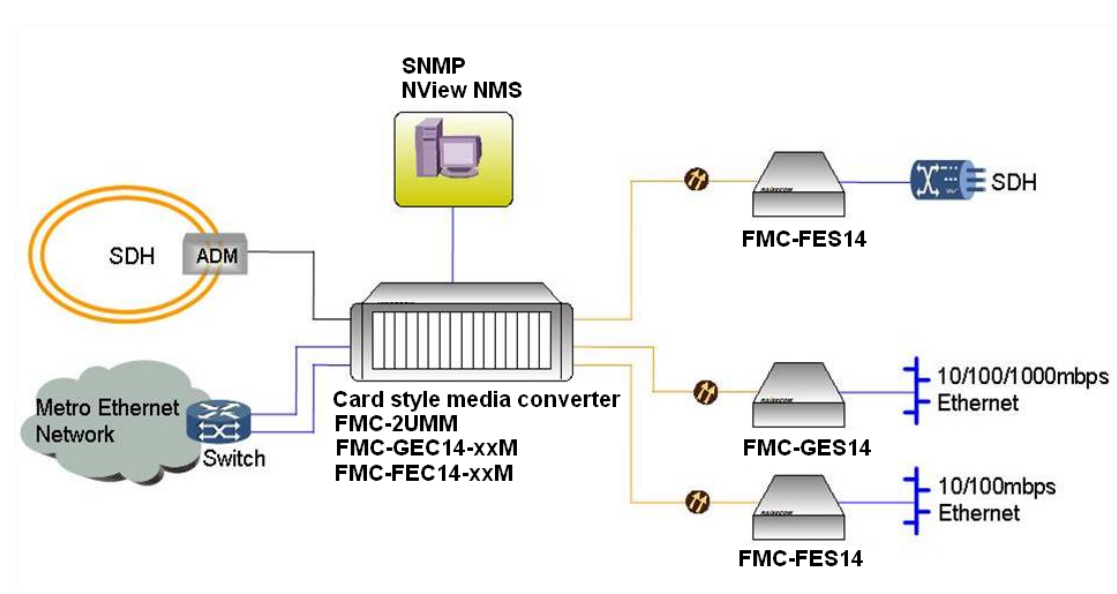

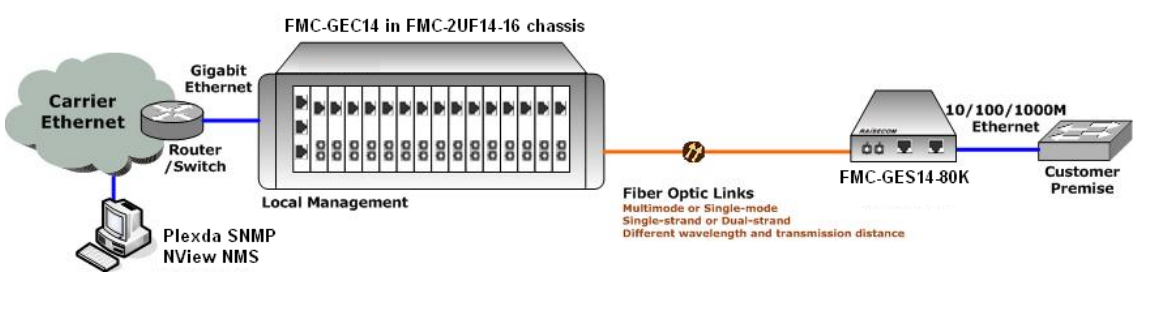

Application：
