Product Introduction:

Key Features

-10/100Base-TX UTP to 100Base-FX fiber media convertion

-IEEE802.3at / IEEE802.3af PoE PSE compatible

-Built-in AC/DC power supply

-Over-current protection

-choice of SC, BiDi or other connectors for multimode and singlemode

-DIP switch to set different configurations

-LFP (Link Fault Pass-through) support

 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5/CAT5e UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

Technical Specifications:

Data Rates:

- 10/100 Mbps (802.3 10Base-T/802.3u 100Base-T)

- 100Mbps (100Base-FX)

Input Power Requirements:

- Input voltage ........................... 100 VAC to 240 VAC

- Input frequency ................................. 47 Hz to 63 Hz

Power over Ethernet Output:

- Pin Assignment and Polarity

For IEEE802.3af standard:

………………..…...4/5 (V+),7/8 (V-)  (default)

……….…………or 1/2(V+),3/6(V-)  (optional)

For IEEE802.3at standard (30Watts maximum):

………………..…...4/5 (V+),7/8 (V-)  (default)

……….…………or 1/2(V+),3/6(V-)  (optional)

For IEEE802.3at standard (50Watts maximum):

………..…...1/2/4/5 (V+),3/6/7/8 (V-)  (default)

- Output Power…..please refer to ordering information

- Efficiency ....................................................75% min

- Short circuit protection........................ auto recovery

- Over current protection ....................... auto recovery

Environmental Conditions:

- Operating temperature ....................... …0℃ to 50℃

- Cooling ........................................ free air convection

- Storage temperature ...................... -20℃ to  +85℃

- Operating Humidity …... 90% max, non-condensing

Mechanical Specifications:

- Case Material……………....…………………..Iron

- Case Color…………………………………….Black

- Net Weight…………..………….550g approx. / unit

- Dimensions…...……110(W) x 40(H) x 140(L) (mm)

 Do not include transceiver length

Connectors:

- AC Inlet…………..…………………………IEC-J-4

- LAN……………..………………….Shielded RJ-45

- Fiber……………..….…….see ordering information

Warranty : 1 year hardware warranty

*Specifications subject to change without notice.

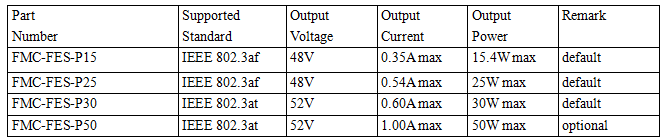

Ordering Information:

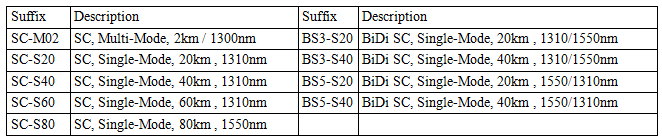

*XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us.
