FMC-NMC13 Media Converter Network Manageable SNMP Card
Product Introduction:

Characteristics

Support SNMP V1, V2c version

Support Trap protocol

Support RS232 UART port configuration

Support database backup and restore

Management destination: Media Converter, Power Supply, Fan

Up to 32 Media Converters can be managed

Support auto-store configuration after power reset, include: configuration of Media Converter, Trap IP address.

GUI interface base on Windows2000/XP OS

All TP port support Auto MDI-MDIX Crossover

Agent

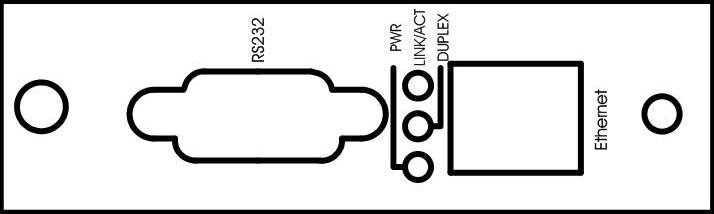

1 Panel of Agent

Fig 1-3-1. Panel of Agent

PWR:

Green

Power indicator

DUPLEX

Green

Indicator of TP port duplex

Bright when full duplex

OFF when half duplex

LINK/ACT:

Green

Indicator of LINK

Blinking when LINK ok and data transmitting

2 Parameters

RS232 Port

Check and configure Agent IP address.

HyperTerminal configuration

Bits per second: 9600bps

Data bits: 8

Parity: NO

Stop bits: 1

Flow control: NO

Connect with PC COM interface by equipped RS232 serial cable.

TP Port

SNMP Management Port

10/100M, Half/full auto-negotiation

Order Information

Part Number

Package

Description

FMC-NMC13

2U Card

Media Converter Network Manageable SNMP Card
