Product Introduction:

FMC-GES14-PE

10/100/1000Base-T to 1000Base-X POE (PSE) Ethernet Media Converter

Key Features

★10/100/1000Base-T UTP to 1000Base-X fiber media convertion

★IEEE802.3at / IEEE802.3af POE PSE compatible

★Choice of SC, FC, LC, BiDi or other connectors for multimode and singlemode optical fiber

★Choice of two or one 10Base-T / 100Base-TX / 1000Base-T RJ45 ports, output power up to 60 watts per port

  (for reference only, 4 pair wires are used)

★Two RJ45 ports are isolated from each other in default configuration

 (be suitable for two RI45 ports version)

★Supports auto MDI-MDIX function

★Supports various type of external DC power supply or rechargeable battery set.

The 10/100/1000Base-T to 1000Base-X POE (PSE) Ethernet media converter allows two types of network segment to be connected easily and supplies power to the remote PD (powered device) equipment at the same time. Complied with IEEE802.3at or IEEE802.3af standard, the external powered POE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) typical power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5/CAT5e UTP cable (cable length up to 100meters / 330feets). Each converter is combined with one fiber port and two or one RJ45 ports. Each RJ45 port can output up to 60 watts power (for reference only, 4 pair wires are used).

Technical Specifications:

Data Rates:

- 10/100/1000Mbps (10/100/1000Base-T)

- 1000Mbps (1000Base-X)

Input Power Requirements:

- DC 52V (50V-56V, IEEE802.3at application)

- DC 48V (44V-56V, IEEE802.3af application)

- DC 48V (36V-56V, non-standard application)

- DC 24V (18V-36V, non-standard application)

- DC 12V (9V-18V, non-standard application)

Power over Ethernet Output:

- Pin Assignment and Polarity

Peak current IO≤0.6A: 1/2 (V+), 3/6 (V-)

Peak current 0.6A＜IO≤1.2A:  1/2/4/5 (V+), 3/6/7/8 (V-)

- Output Power…..please refer to ordering information

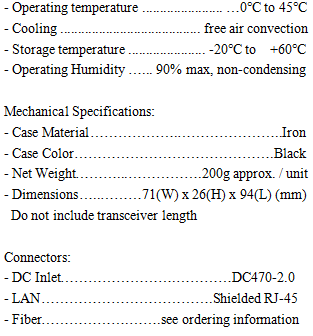

Environmental Conditions:
