FMC-FE14-C serial 10/100M 2U card fiber media converter
Product Introduction:

Product Description

The FMC-FE14-Cseries TX to FX Network media Converter is a Fast Ethernet media converter that

translates transmission signals from a twisted-pair 100BASE-TX cable to100BASE-FX fiber optic cable. It extends network data transmission distances beyond the 100 meters limitation distances of copper

wire up to 120 kilometers by using Single Mode fiber optic model. The 100BaseTX-to-FX Media Converter is typically used to connect Fast Ethernet devices, such as 100Base-TX Hubs, at long distance. The 100BaseTX-to-FX Media Converter will connect servers or workstations located up to 100 kilometers from each other.

The converter is single core fiber optic connector (transmitting-TX and Receiving -RX are in one fiber cable), and one RJ-45 Jacks, external or internal power supply for option. Six LED indicators are built –in for easy diagnosing and monitoring the status of Power(PWR), Unshielded Twisted Paired activity link(Link/ACT), Fiber activity link(Link/ACT), Full/Half duplex(FDX), Fiber link up(FX), 100Base-TX link up (100) data rate. It can be configured automatically for full duplex or half duplex and data rate operation.It is compact, cost-effective, low dissipative, high reliable and stable. It issupport using in 16solts chassis rack.

Features

•Supports IEEE 802.3 10 Base-T, 802.3u,100Base-TX, 100Base-FX protocols

•Support IEEE 802.1Q VLAN TAG, Spanning Tree standard.

•Auto Negotiate 10/100M

•Auto Half/Full Duplex data mode

•Auto MDI/MDIX provides automatic cross

• Transmission distance up to 120km.

•TX/RX Dual fibers.

• Support over-sized packets up to 1600Bytes.

•support use in 2U 19inch 16solts chassis rack.

•Support IEEE802.1p QOS PRI protocol

•SC, LC, FC , ST fiber connector for option

Performance Specification

Parameter

Type

Data rate (Mbps)

10/100

Optical wavelength (nm)

1310, 1550 or CWDM

Fiber type(μm)

Single mode 9/125 or MMF 50/125, 62.5/125

Connector type

SC,LC, ST, FC

Max distance (km)

20,40,60,80,100,120

Power supply

+5VDC

Operating temperature

-10～70℃

Storage temperature

-40～80℃

Relative humidity

5% to 90% non condensing

Technical Parameters

Mode

Connector

Wave length (nm)

Output

power (dB)

Receiving sensitivity

(dB)

Max. Optical

(dB)

Transit distance (Km)

FMC-FE14-C20SC

X

1310

-12~-15

-38

≥-12

0~25

FMC-FE14-C60SC

X

1310

-8~-12

-38

≥-8

0~60

FMC-FE14-C80SC

X

1550

-3~-5

-38

≥-3

0~80

FMC-FE14-C100SC

X

1550

-1~-3

-38

≥-1

0~100

FMC-FE14-C120SC

X

1550

+3~-1

-38

≥-1

0~120

LED indicators in the front panel of the converter:

LED indicator lamp

Status

Explanation

Link/Act

On

Connection status display for link.

“ON” indicates that link is in correct connection.

Blink

Active status display of fiber port or RJ45 port

“Blink” indicates packet goes through media converter

FDX

On

Transceiver works in the full duplex mode.

Off

Transceiver works in the half duplex mode.

PWR

On

Power is on and normal.

TX

On

TX link status

FX

On

FX link status

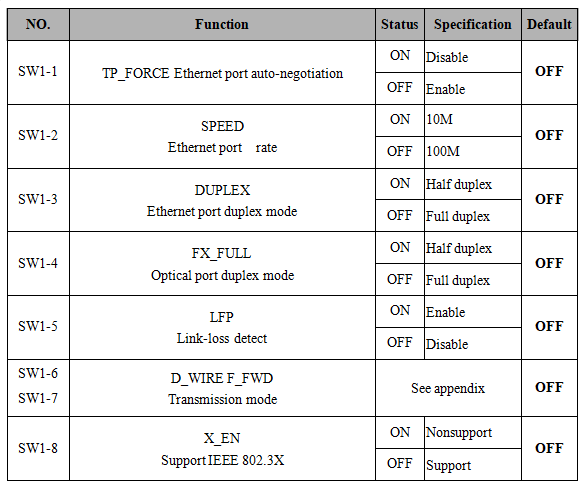

SW1:An 8 bits switch on Media Converter PCB signed “SW1”, settings as follows:


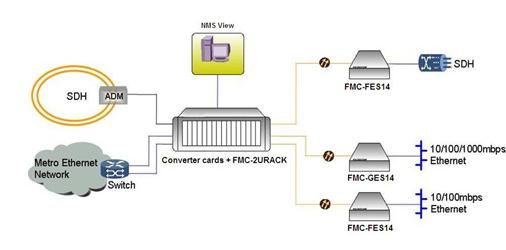

Application:
