Product Introduction:

Features

• Up to 50Gbps data rate per channel by PAM4

modulation

• Support 200GAUI-4 electrical interface

• Integrated 850nm VCSEL array and PD array

• Single +3.3V power supply

• Case temperature range: 0 ~ +70℃

• Hot-pluggable QSFP form factor • RoHS complaint

Applications

•Data centers and Cloud

Networks

Standards

•IEEE 802.3cd

•SFF 8679

•CMIS4.0 or SFF8636

QSFP56 Connector and Pinout Description

The electrical interface to the transceiver is a 38 pins edge connector. The 38 pins provide high speed data, low speed monitoring and control signals, I2C

communication, power and ground connectivity. The top and bottom views of the connector are provided below, as well as a table outlining the contact

numbering, symbol and full description.

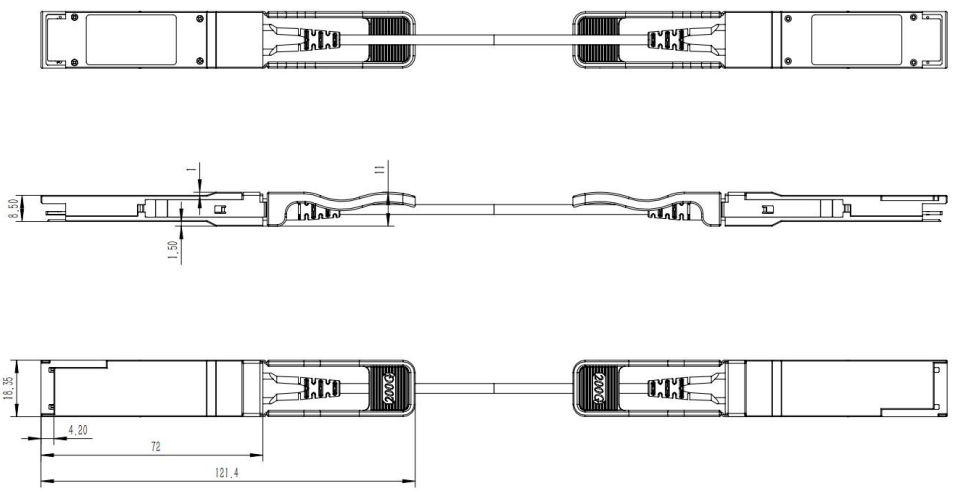

Package Outline

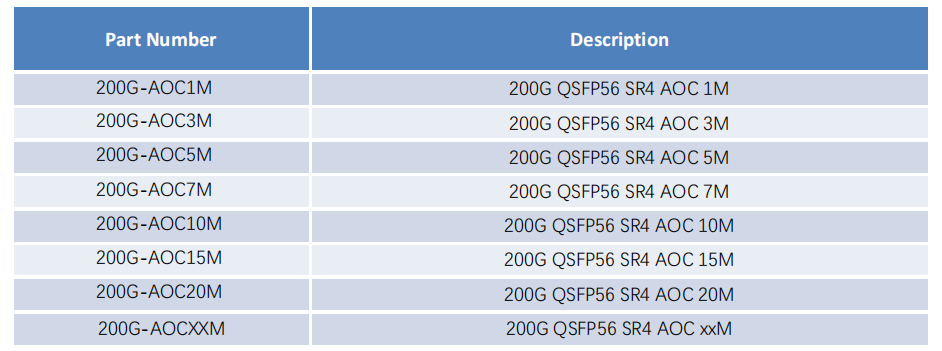

Standard Cable lengths for each PN
