Product Introduction:

Features

Hot Pluggable QSFP28 form factor

Supports 101.3Gb/s aggregate bit rate

Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

Power dissipation: <2.5 W（each one）

Single 3.3V power supply

4x25Gb/s 850nm VCSEL and PIN array

4x25G electrical interface

Commercial case temperature range of 0°C to 70°C

I2C management interface

Class 1 Laser Products

Applications

100GBASE-SR4 100G Ethernet

Standards

Compliant with QSFP28 MSA

Compliant to IEEE 802.3bm

Compliant to SFF-8636

Compliant with RoHS-6

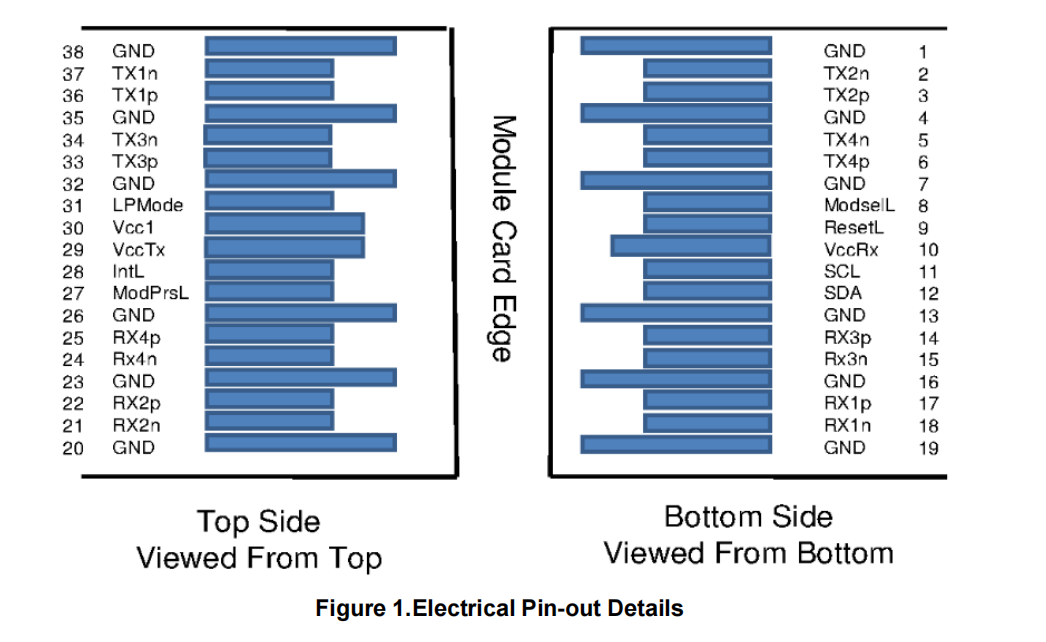

QSFP28 Connector and Pinout Description

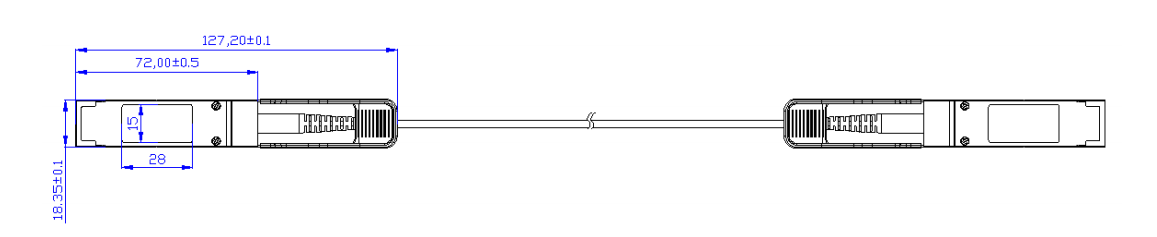

Package Outline

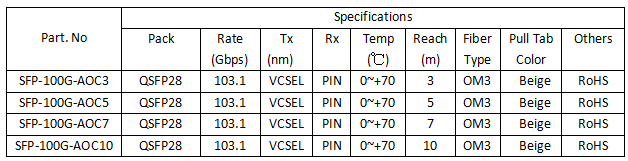

Standard Cable lengths for each PN
