Product Introduction:

Features

Hot-pluggable SFP+ form factor

Supports 10.3125Gb/s bit rate

850nm VCSEL laser and PIN photo detector

Operating environment temperature range: 0 ~ +70℃

Single 3.3V power supply

DDMI function available with internally calibrated mode

Low power dissipation: ＜1.0W

Applications

Data Center

10GBASE-SR Ethernet

Fiber Channel Applications

Servers, Switches, Storage and Host Card Adapters

Standards

Compliant with SFF-8024、SFF-8431

Compliant with IEEE802.3ae

Compliant with SFF-8472

RoHS complaint

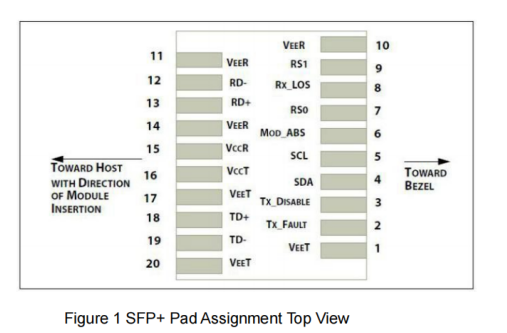

Pin definition

The SFP+ modules are hot-pluggable. Hot pluggable refers to plugging in or unplugging a module while the host board is powered. The SFP+ host connector is a 0.8 mm pitch 20 position right angle improved connector specified by SFF-8431, or stacked connector with equivalent electrical performance. SFP+ module contacts mates with the host in the order of ground, power, followed by signal as illustrated by Figure 1 and the contact sequence order listed in Table 1.

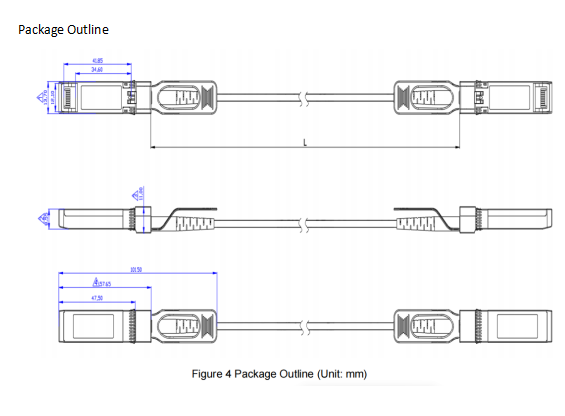

Package Outline

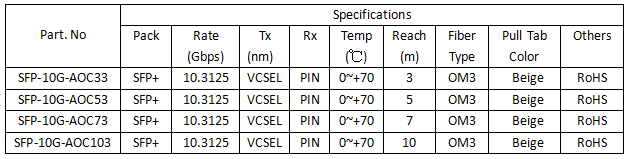

Ordering information
