Product Introduction:

Features

Hot Pluggable QSFP+ form factor

Supports 41.25Gb/s aggregate bit rate

Multirate capability: 1.06Gb/s to 10.5Gb/s per channel

Power dissipation: <1.5 W（each one）

Single 3.3V power supply

4x10Gb/s 850nm VCSEL and PIN array

Unretimed XLPPI electrical interface

Commercial case temperature range of 0°C to 70°C

I2C management interface

Class 1 Laser Products

Applications

40GBASE-SR4 Ethernet

40G-IB-QDR /20G-IB-DDR / 10G-IB-SDR InfniBand

Standards

Compliant with QSFP+ MSA

Compliant to IEEE 802.3ba

Compliant to SFF-8436

Compliant with RoHS-6

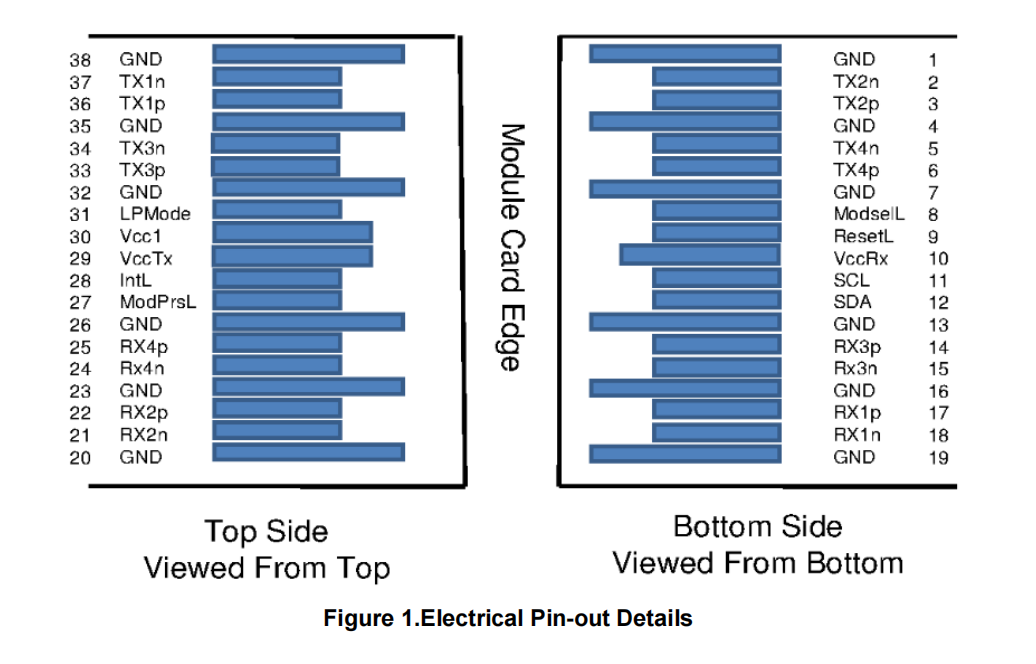

Pin definition

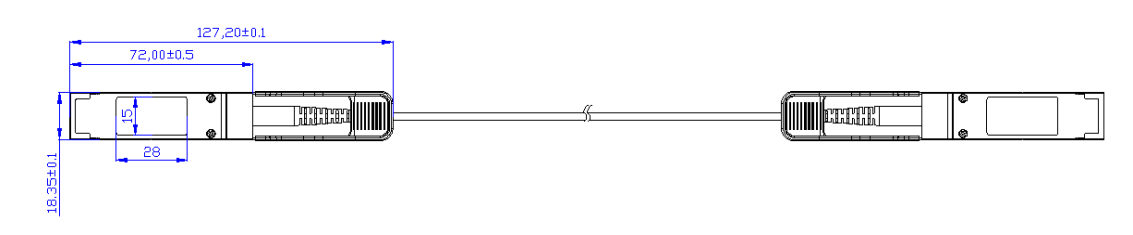

Package Outline

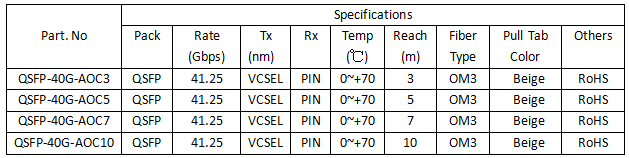

Ordering information
