SFP-FE-S20

155Mb/s Long-Wavelength SFP Transceiver

For fast Ethernet port Data Sheet

APPLICATIONS

100Base-LX Ethernet Links

High speed I/O for file servers

Switch to Switch interface

Distributed multi-processing

Channel extender, Data storage

    OC3 SONET/SDH equipment system

PRODUCT FEATURES

Compliant with specifications for SFP MSA standard

Compliant with specifications for IEEE-802.3ah Standard

    Compliant with specifications for SDH/SONET/ATM standard Duplex LC Connector 1310nm FP laser transmitter

Differential LVPECL inputs and outputs

TTL signal detect indicator

Up to 155Mb/s data links

Single Power Supply 3.3V

Hot-Pluggable SFP footprint  Up to 20km on 9/125μm SMF  Metal enclosure for lower EMI Extended operation temperature range: 0℃ to +70℃

The SFP-FE-S20 transceiver is a high performance and cost effective transceiver for serial optical data communication applications, The interface converters meet the SFP Multi-Source Agreement  (MSA) specifications, This module is designed for Single-mode fiber operation at the wavelength of 1310nm, The transmitter section incorporates an advance FP laser, with temperature compensation and automatic power control circuit (APC). The receiver section incorporates an efficient GaAs/InP PIN photodiode, with AGC for wide dynamic range.

The transceiver is a duplex LC connector transceiver, designed for use in FE and to provide a IEEE-802.3ah compliant link at 155Mbps applications. The transceiver are hot-pluggable, the characterization is performed in accordance with Bellcore specification TA-NWT-000983. All of them are housed in a stainless package and the combination produces a component of high reliability.

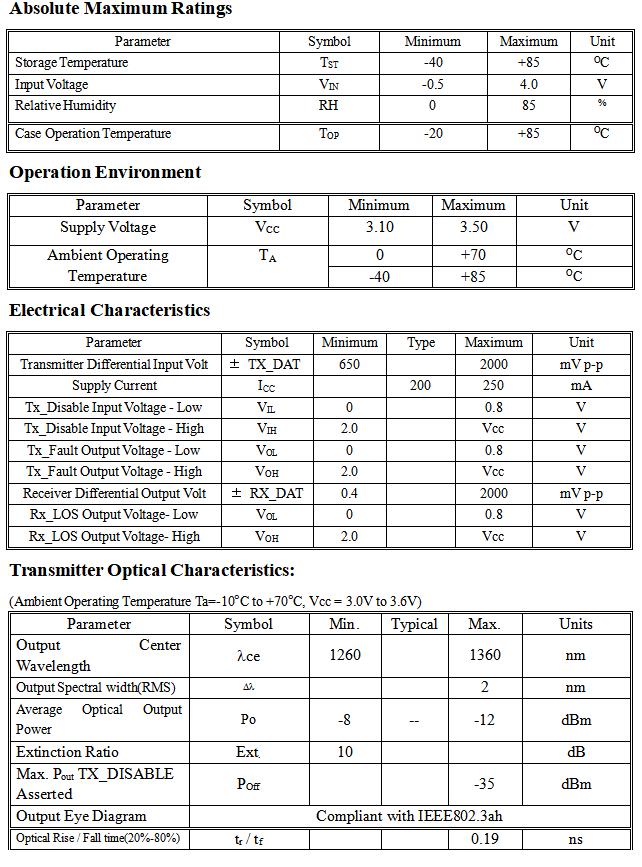

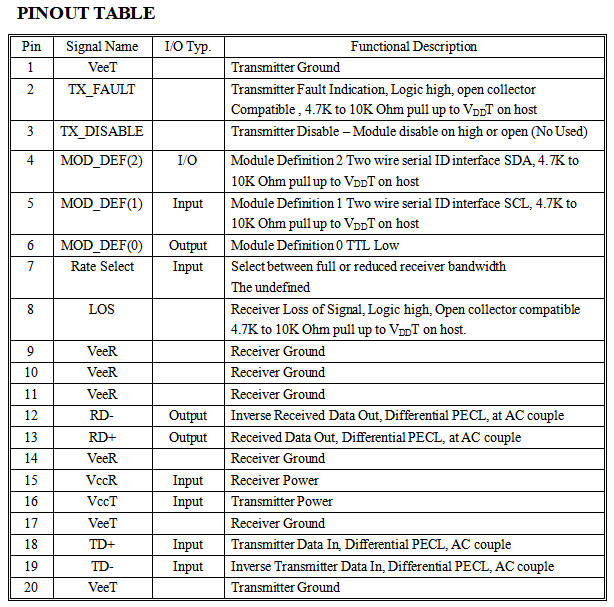

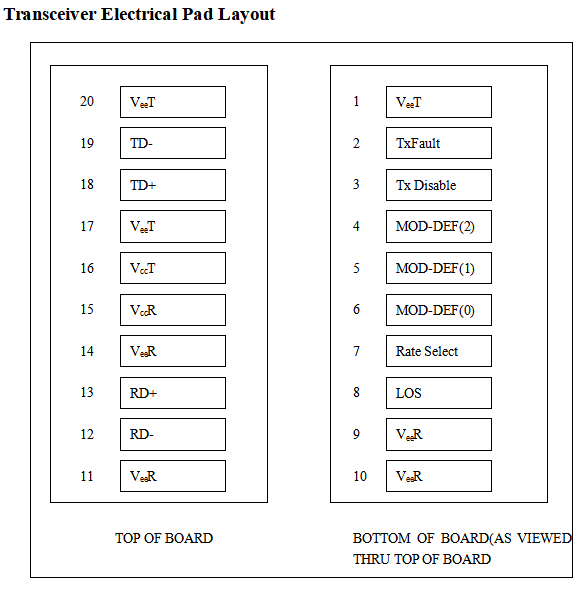

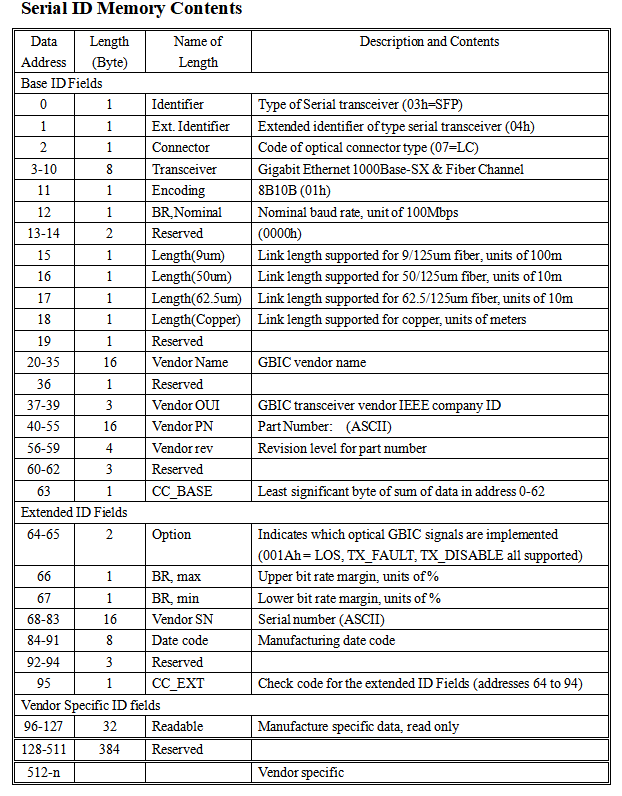

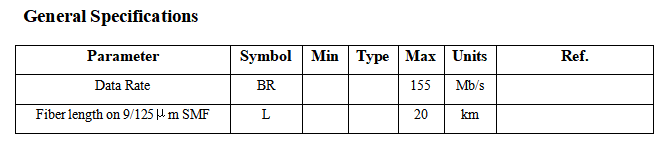

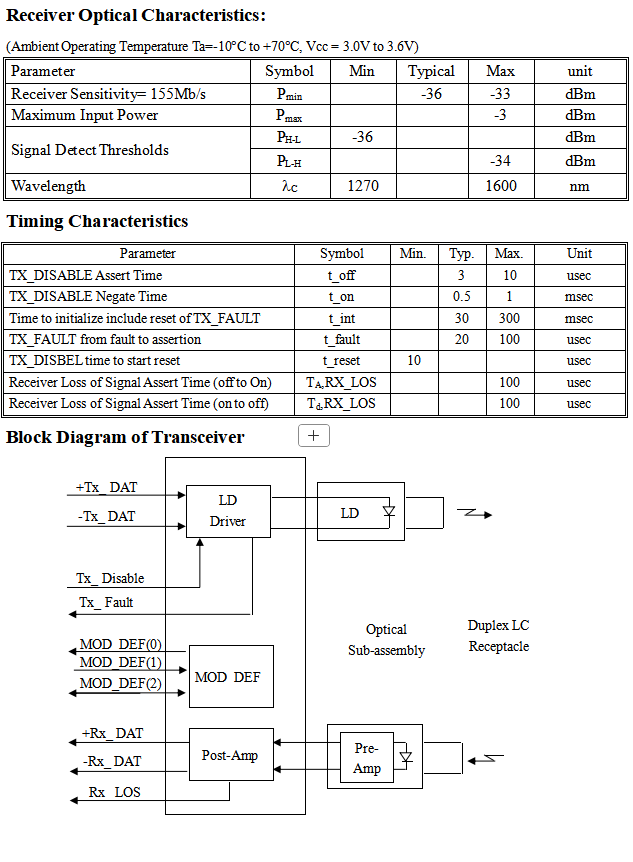

Recommend Application Circuit

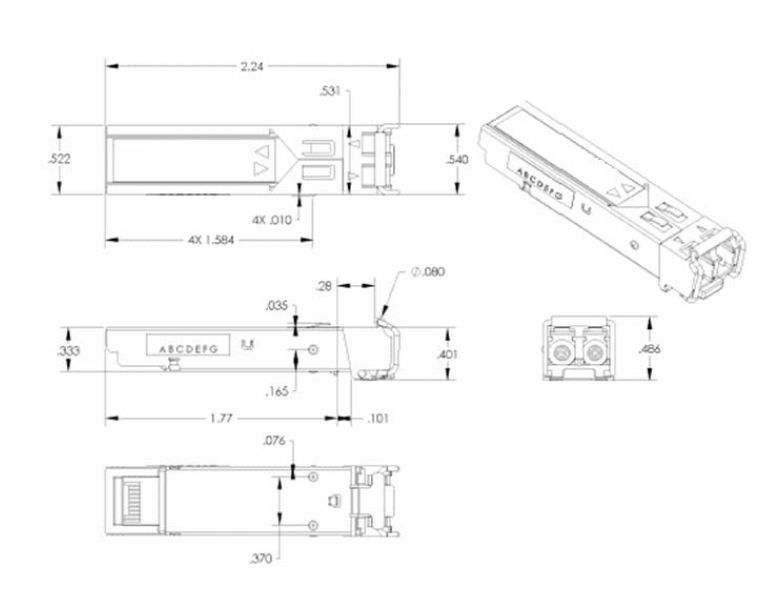

Outline Dimensions
