Product Introduction:

Features

◎  Supports 10Gb/s serial optical interface

◎  Up to 300m transmission on OM3 MMF

◎850nm VCSEL laser and PIN receiver

◎  Hot-pluggable SFP+ footprint

◎  SFI high speed electrical interface

◎  Built-in digital diagnostic functions

◎  Single +3.3V power supply

◎  Power consumption less than 0.75 W

◎  Operating case temperature: -5~+70°C

◎  SFP+ MSA package with duplex LC connector

Applications

◎  10GBASE-SR/SW 10G Ethernet

◎  Other optical links

Standard

◎  Compliant with SFF-8472 and SFP+ MSA

◎  Compliant to SFF-8431 and SFF-8432

◎  Compliant with IEEE 802.3ae 10GBASE-SR/SW

◎  Compliant with FCC 47 CFR Part 15, Class B

◎  Compliant with Telcordia GR-468-CORE

◎  RoHS Compliant

Table 1. Regulatory Compliance

Product Description

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 300m transmission distance with OM3 MMF.

The transceiver consists of three sections: a Un-cooled 850nm VCSEL lasertransmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

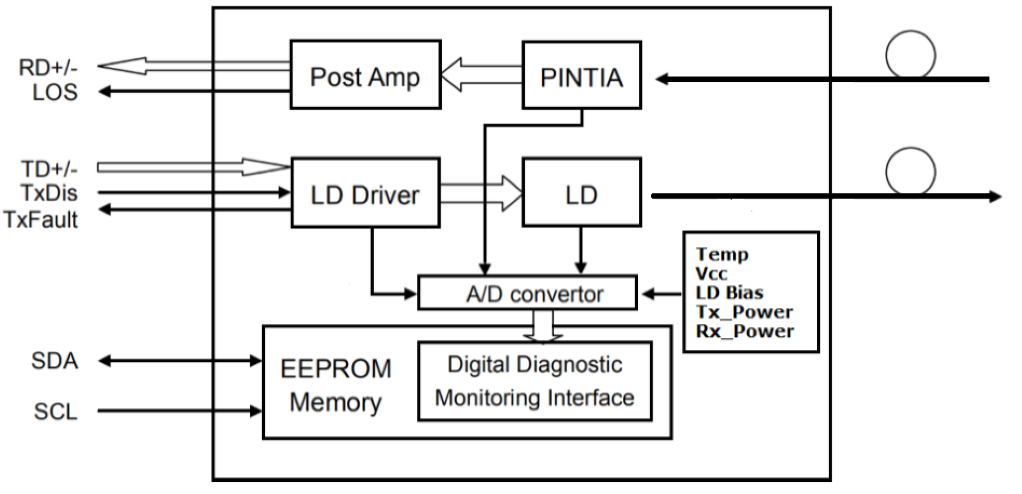

Figure 1.Transceiver functional Block Diagram

Absolute Maximum Ratings

Table 2. Absolute Maximum Ratings

(Exceeding the limits below may damage the transceiver module permanently)

Notes:

1. Non-condensing.

Recommend Operation Environment

Table 3. Recommend Operation Environment

Notes:

1. Measured with ITU-T G.651 OM3MMF

Optical Characteristics

Table 4. Optical Characteristics(TOP = -5 to +70 °C, VCC = 3.13 to 3.47 V)

Notes:

1. The optical power is launched into MMF.

2. Measured with worst ER=3.0dB, RPBS 2^31-1 test pattern @10.3125Gbs.

3. Measured with worst ER=3.0dB, RPBS 2^31-1 test pattern @10.3125Gbs BER=<10^-12.

Electricalptical Characteristics

Table 5. Electrical Characteristics(TOP = -5 to +70 °C, VCC = 3.13 to 3.47 V)

Notes:

1. CML input/output, internally AC-coupled and terminated.

2. Measured with Module Compliance Test Board and OMA test pattern.

3. LOS is an open collector output. Should be pulled up with 4.7kΩ to 10kΩ on the host board.

    Normal operation is logic 0; loss of signal is logic 1.

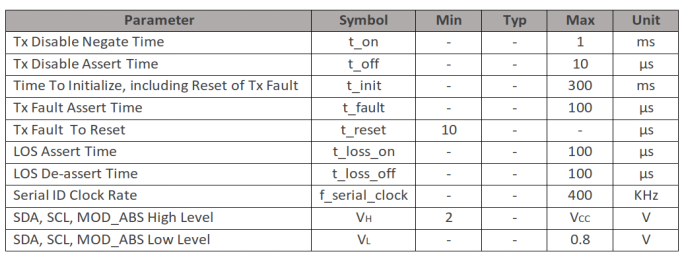

Table 6. Timing and Electrical

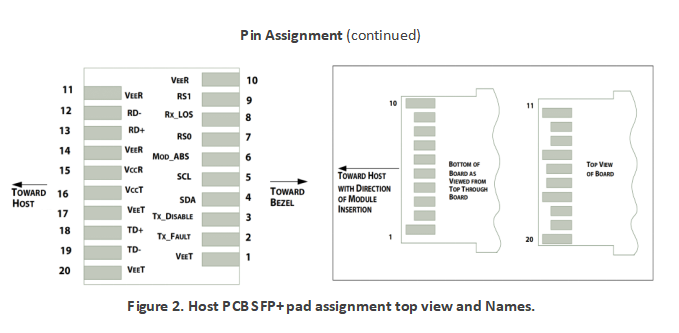

Pin Assignment

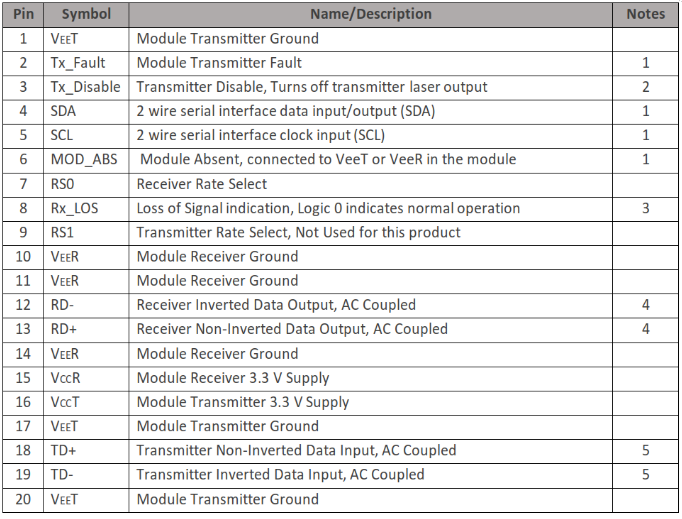

Table 7. Pin Descriptions

Notes:

1. Open collector/drain output, which should be pulled up with a 4.7kΩ to 10kΩ resistor on the host

    board if intended for use. Pull up voltage should be between 2.0V to 3.6V. A high output indicates

    a transmitter fault caused by either the TX bias current or the TX output power exceeding the

    preset alarm thresholds. A low output indicates normal operation. In the low state, the output is

    pulled to <0.8V.

2. Laser output disabled on Tx_Disable >2.0V or open, enabled on Tx_Disable <0.8V.

3. LOS is open collector output. Should be pulled up with 4.7kΩ to 10kΩ on host board to a voltage

    between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

4. RD-/+: These are the differential receiver outputs. They are internally AC-coupled 100Ω

    differential lines which should be terminated with 100Ω (differential) at the user SERDES.

5. TD-/+: These are the differential transmitter inputs. They are internally AC-coupled, differential

    lines with 100Ω differential termination inside the module.

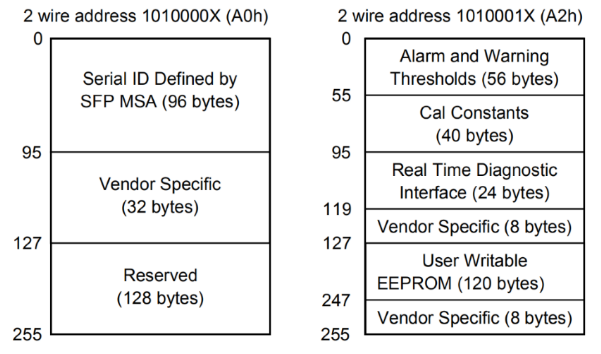

Digital Diagnostic Memory Map

The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire serial interface (SCL, SDA).

The diagnostic information with internal calibration or external calibration all are implemented, including received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.

The digital diagnostic memory map specific data field defines as following.

Table 8. Digital Diagnostic Memory Map (Specific Data Field Descriptions)

Table 9. Digital Diagnostic Monitor Characteristics

Recommended Circuit

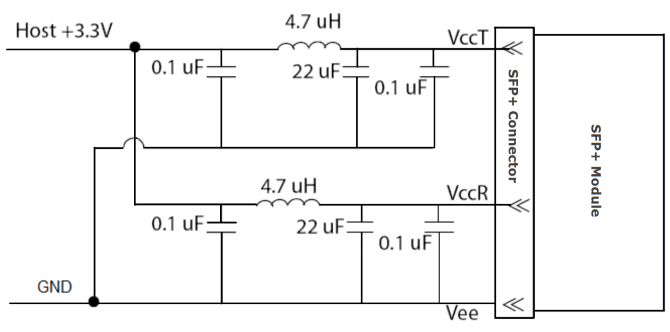

Figure 3, Recommended Host Board Power Supply Circuit

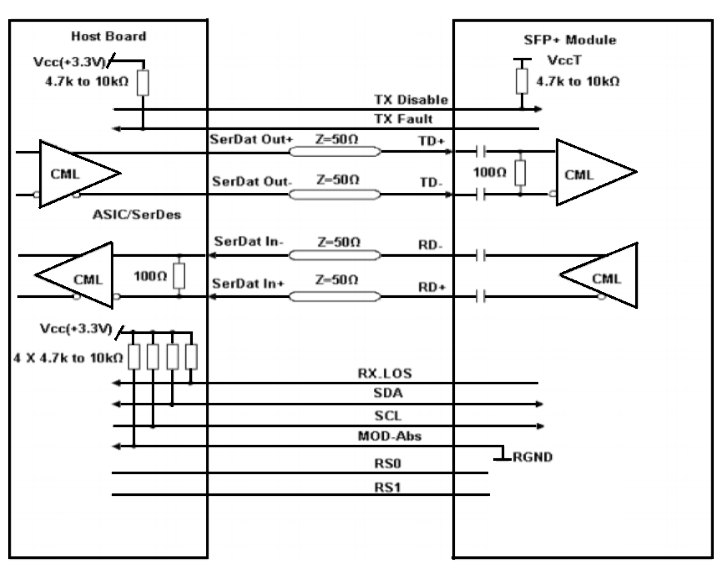

Figure 4, Recommended Interface Circuit

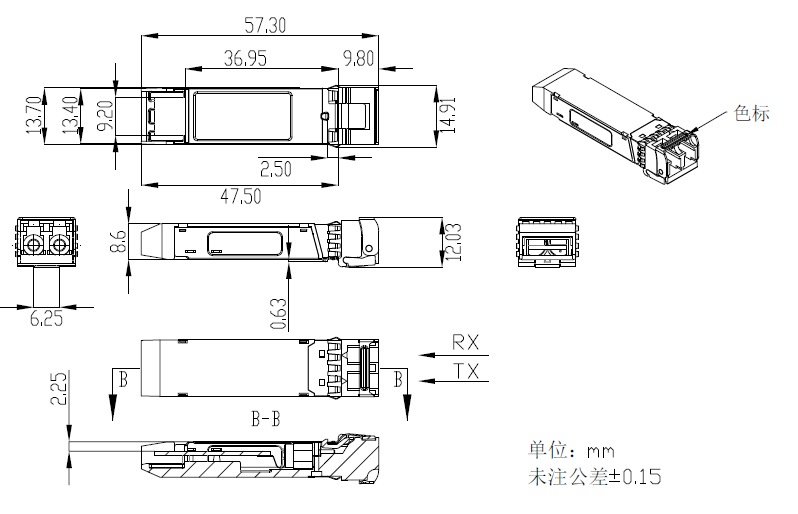

Mechanical Dimensions

Ordering information

Table 10. Ordering information

Warnings

Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures.

Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes.

Avoid eye exposure to direct or indirect radiation.
