Product Introduction:

SGD600-AFGM-SW20824S

14 Ports Gigabit Managed Industrial PoE Switch

(Adopt VTS Industrial Grade Switch Chip)

Key Highlights

✅ Industrial-Grade Durability for Harsh Environments

•  Extreme Adaptability: Operating temperature range of -40℃ to 85℃, IP40 protection rating, rugged metal casing, designed for demanding industrial applications like wind power, rail transportation, and power grids.

•  Dual Power Redundancy: Supports DC48-55V dual power inputs with reverse polarity protection, ensuring 24/7 uninterrupted operation and ultra-low failure rates.

✅ Flexible Networking & Smart Management

•  8 PoE Ports: Delivers up to 30W per port (802.3at), auto-detects PoE devices, and enables plug-and-play deployment for IP cameras, wireless APs, and more.

•  4 SFP Fiber Ports: Multi-mode transmission up to 550m, single-mode up to 120km, ideal for long-distance network expansion.

•  Advanced Management: Supports VLAN, QoS, loop protection (STP/RSTP/MSTP), port mirroring, and multi-management modes (WEB/SSH/SNMP), improving operational efficiency by 50%.

✅ Robust Safety & Certifications

•  Anti-Interference Design: EMC Level 4 compliance, port lightning protection (6KV common mode / 2KV differential mode), and 15KV ESD shielding for high electromagnetic interference environments.

•  Global Certifications: FCC, CE, RoHS compliant, ensuring industrial safety and environmental standards.

Why Choose This Switch?

•  Proven in Critical Applications: Widely used in subway PIS systems, power SCADA, and smart warehouses for reliable performance.

•  Cost Efficiency: PoE reduces cabling complexity, while fiber ports future-proof your network, lowering long-term deployment costs.

•  Long-Term Reliability: MTBF 100,000 hours, 5-year warranty, and minimal downtime for maximum ROI.

Ideal Applications

•  Industrial Automation: Factory production lines, robotic systems, wastewater treatment control.

•  Smart Transportation: Subway passenger information systems (PIS), traffic signal monitoring, highway communication networks.

•  Harsh Outdoor Environments: Wind power substations, oil drilling platforms, remote security surveillance.

Technical Specifications

Switching Capacity 28Gbps

Packet Forwarding Rate 20.83Mpps

Management Features VLAN, ACL, Static Routing, IGMP Snooping

Power Input DC48-55V (Dual Redundant Power)

Protection Rating IP40 Metal Housing, DIN Rail Mounting

User Benefits

•  Plug-and-Play: Auto-detection for PoE devices reduces deployment time.

•  Future-Ready: Fiber ports support long-distance transmission for network scalability.

• Easy Maintenance: Online firmware upgrades and remote management minimize

 maintenance costs.

【Product Description】

14 Port Gigabit Industrial Ethernet PoE Switch, 8 Gigabit PoE Ports +2 Gigabit Uplink Port + 4 Gigabit SFP Port + 1 Console Port, supporting Din rail and wall mounting. Supports dual power input (DC48-55V); -40 to 85℃ working temperature; Certified by industrial environment and support FCC, CE, CCC, RoHS standards; Reliable industrial design ensures uninterrupted automation system Stable operation.

This series of industrial grade switches can be widely used in wind power, electric power, assembly automation, subway PIS, electric power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries. It is a green low-power industrial Ethernet switch.

This series of switches provides advanced network management capabilities: redundant ring, loop protection, VLAN, QOS, speed control, port mirroring, and firmware online upgrades. With standardized industrial design, it can meet the stringent requirements of industrial sites. All components use industrial grade for greater reliability, providing redundant, wide-voltage power inputs and outputs for uninterrupted industrial safety communications.

【Features】

1. 8 Gigabit PoE Ports +2 Gigabit Uplink Port + 4 Gigabit SFP Port + 1 Console Port

2. Support IEEE802.3，IEEE802.3u，IEEE802.3x，IEEE802.3z / ab，IEEE802.1Q，IEEE802.1p，IEEE802.1d/w

3. Support PoE Power Management，PoE Watch dog

4. Support STP（802.1D), RSTP（802.1w），802.1s (MSTP)，ERPS

5. Support SNMP v1/v2/v3

6. Support IGMP Snooping , Static multicast filtering and MLD Snooping

7. Support 802.1x port and AAA Certification，Enhance network security

8. Support WEB, Telnet，CLI,SSH management

9. Support IEEE802.3af（15.4w）, IEEE802.3at（30W）

10. IP40 protection, rugged high-strength metal case，DIN35 Rail mounting

11. EMC grade 4 design，-40 to 85℃ working temperature

12. Support Redundant power supply access, support anti-reverse connection

13. Support Port lightning protection, Surge：General Mode 6KV, Differential Mode2KV,ESD: 15KV, Support EMC EN55032 standard

【Application Environment】

 Metropolitan area fiber broadband network: telecommunications, cable TV, network system integration, etc., network operators.

Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.

Multimedia transmission: image, voice, data integrated transmission, suitable for remote teaching, conference TV, videophone and other applications.

Real-time monitoring: simultaneous transmission of real-time control signals, images, data

 Resistant to harsh environment: Suitable for strong electromagnetic interference, networking in harsh environments at long distances.

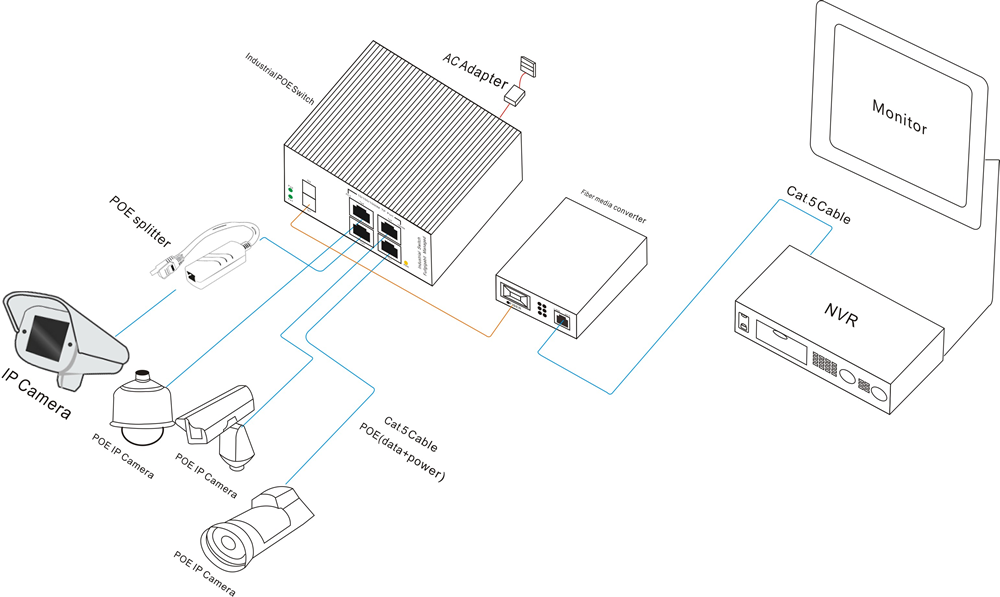

【Connection diagram】

【Technical parameters】

HardwareParameters

L2 management

L3 ( Layer 3 Switching ) and Router Function

Extended Function

Management Function

【Ordering Information】

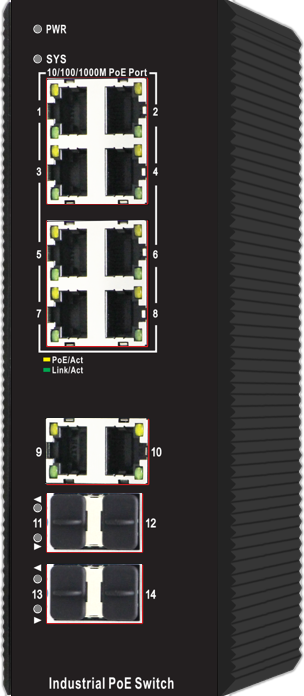

【Product Picture】
