SGD600-AFGM-SWG2086S
14 Ports Gigabit Managed Industrial PoE Switch
(Adopt VTS Industrial Grade Switch Chip)
Core Advantages
✅ Industrial-Grade Reliability
• Harsh Environment Adaptation: Operating temperature range of -40℃ to 85℃, IP40 protection rating, rugged metal casing for shock resistance, ideal for demanding scenarios like wind power, electric power, and rail transportation.
• Dual Power Redundancy: Supports dual DC48-55V power inputs with reverse polarity protection, ensuring 24/7 uninterrupted operation.
✅ High-Performance Network Management
• 8 PoE Ports: Delivers up to 30W per port (802.3at), auto-detects PoE devices, and supports plug-and-play deployment for IP cameras, wireless APs, and more.
• 6 SFP Fiber Ports: Multi-mode transmission up to 550m, single-mode up to 120km, enabling seamless long-distance network expansion.
• Smart Management Features: Supports VLAN, QoS, loop protection (STP/RSTP), port mirroring, and multi-management modes (WEB/SSH/SNMP) for efficient operation.
✅ Safety & Certifications
• Multi-Layer Protection: Port lightning protection (common mode 6KV, differential mode 2KV), ESD 15KV shielding, and EMC Level 4 anti-interference design.
• Global Certifications: Complies with FCC, CE, RoHS standards, ensuring industrial safety compliance.
Application Scenarios
• Industrial Automation: Factory production lines, SCADA systems, smart warehouses.
• Smart City Solutions: Subway PIS systems, traffic monitoring, remote education video transmission.
• Extreme Environments: Wind power substations, oil drilling platforms, outdoor security surveillance.
User Benefits
• Cost Savings: PoE power reduces cabling complexity and deployment costs.
• Long-Term Stability: 5-year warranty, MTBF 100,000 hours, and ultra-low failure rates.
• Scalability: Fiber-optic long-distance transmission supports future network expansion.
【Product Description】
14 Port Gigabit Industrial Ethernet PoE Switch, 8 Gigabit PoE Ports + 6 Gigabit SFP Port + 1 Console Port, supporting Din rail and wall mounting. Supports dual power input (DC48-55V); -40 to 85℃ working temperature; Certified by industrial environment and support FCC, CE, CCC, RoHS standards; Reliable industrial design ensures uninterrupted automation system Stable operation.
This series of industrial grade switches can be widely used in wind power, electric power, assembly automation, subway PIS, electric power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries. It is a green low-power industrial Ethernet switch.
This series of switches provides advanced network management capabilities: redundant ring, loop protection, VLAN, QOS, speed control, port mirroring, and firmware online upgrades. With standardized industrial design, it can meet the stringent requirements of industrial sites. All components use industrial grade for greater reliability, providing redundant, wide-voltage power inputs and outputs for uninterrupted industrial safety communications.
【Features】
1. Support 8 Gigabit PoE Ports + 6 Gigabit SFP Port + 1 Console Port
2. Support IEEE802.3，IEEE802.3u，IEEE802.3x，IEEE802.3z / ab，IEEE802.1q，IEEE802.1p，IEEE802.1d/w
3. Support PoE Power Management，PoE Watch dog
4. Support STP（802.1D), RSTP（802.1w），802.1s (MSTP)，ERPS
5. Support SNMP v1/v2/v3
6. Support IGMP Snooping , Static multicast filtering and MLD Snooping
7. Support 802.1x port and AAA Certification，Enhance network security
8. Support WEB, Telnet，CLI,SSH management
9. Support IEEE802.3af（15.4w）、IEEE802.3at（30W）
10. IP40 protection, rugged high-strength metal case，DIN35 Rail mounting
11. EMC grade 4 design，-40 to 85℃ working temperature
12. Support Redundant power supply access, support anti-reverse connection
13. Support Port lightning protection, Surge：General Mode 6KV, Differential Mode2KV,
ESD: 15KV
14. Support EMC EN55032 standard
【Application Environment】
Metropolitan area fiber broadband network: telecommunications, cable TV, network system integration, etc., network operators.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
Multimedia transmission: image, voice, data integrated transmission, suitable for remote teaching, conference TV, videophone and other applications.
Real-time monitoring: simultaneous transmission of real-time control signals, images, data
Resistant to harsh environment: Suitable for strong electromagnetic interference, networking in harsh environments at long distances.

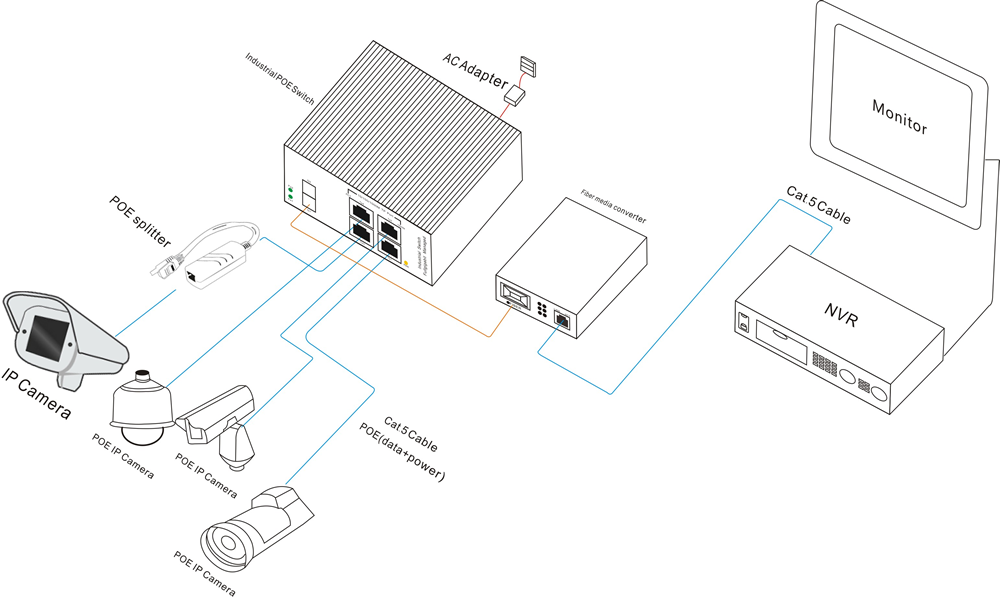

【Connection diagram】
【Technical parameters】
Product Name | 14 Ports Gigabit Industrial Managed PoE Switch | |
Product Model | SGD600-AFGM-SWG2086S | |
Interface | 8 Gigabit PoE Ports + 6 Gigabit SFP Port + 1 Console Port | |
Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.1d IEEE802.1w | |
POE Parameters | POE Standard: IEEE 802.3af / IEEE 802.3at | |
Single PoE Port Power Output: Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at) | ||
POE port Auto detect IEEE 802.3af / at devices | ||
POE Power Output: DC48-55V | ||
POE Power Pin: 1/2- ; 3/6+ | ||
Network Media | 10BASE-T: Cat3、4、5 UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) | |
Fiber Media | Multi-mode：850nm,1310nm Transmission Distance: 550m/2Km Single-mode：1310nm,1550nm Transmission Distance: 20/40/60/80/100/120Km | |
LED Indicator | PWR | Lighting：Powered |
SYS | Lighting：System is operating normally Un-Light：System is not running | |
Yellow light | Lighting：PoE Powered | |
Green light | Lighting：Link normally Un-Light：Link disconnect | |
G9-G14 | Lighting：Fiber Connection is Normal Un-Light：Disconnect | |
Power Supply | Input Voltage: DC48～55V Type of input: 4 PIN terminal （block V1+V1- V2+ V2-） | |
Physical structure | Protect grade： IP40 Installation：DIN Rail Product weight： 1 KG Package weight：1.3KG（Without power） Produc Dimensions(L×W×H): 188mm*130mm*64mm Package Dimensions(L×W×H): 250mm×210mm×88mm Standard packing(L×W×H): 608mm×500 mm×435mm Standard packing quantity：28 (PCS) | |
Working Environment | Operating temperature: -40～85℃ Storage temperature: -40～85℃ Humidity: 5%~95 % ( No condensation) | |
Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |
Certification | CE mark, commercial | |
MTBF | 100,000 hours | |
Packing list | 1. Industrial grade switch: 1 Set 2. Instruction manual: 1 PCS 3. Certificate, warranty card: 1 PCS 4. Serial cable：1PCS 5. Operation manual CD：1 PCS | |
Warranty | 5 years | |
HardwareParameters
Bandwidth | 28Gbps |
Packet Forwarding Rate | 20.83Mpps |
RAM | 128MB |
Flash | 16MB |
Packet Buffer Memory | 4M |
Jumbo frame | 9.6Kbytes |
VLANs | 4096 |
MAC | 8K |
Forwarding Mode | Store-And-Forward |
L2 management
Port management | Support enable / disable port Support speed, duplex, MTU setting, etc. Support flow control flow control settings Support port mirroring. Support port in / out direction Support port speed limit Support port isolation setting Unknown unicast, multicast, broadcast storm suppression |
STP | Standard Spanning Tree (STP) 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s |
Ring Network Protocol | ERPS |
Link Aggregation | Support static manual aggregation Support LACP dynamic convergence |
VLAN | Support Port based VLAN and IEEE 802.1Q VLAN |
GVRP | Support GVRP,Global configuration, port configuration |
IGMP Snooping | Support static add / delete |
MAC | Support static add / delete MAC address learning limit Support dynamic aging time settings |
L3 ( Layer 3 Switching ) and Router Function
Interface Configuration | Support virtual VLAN interface |
ARP | Support check ARP |
Router Function | Static Router |
Extended Function
ACL | based on the source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number Support time-range time management |
QOS | based on 802.1p (COS) classification Based on DSCP classification Based on the source IP, destination IP, port number classification Support SP, WRR, DRR scheduling strategy Support traffic speed limit CAR |
LLDP | supports LLDP link discovery protocol |
User Setting | Support add/delete user |
Log | User login, operation, status, event log |
Port security | Dyning Gasp、Snmp Trap |
Prevent Attack | DOS defense Support for CPU protection, limited to send CPU message rate ARP binding (IP, MAC, PORT binding) |
System Management | Device reset, configuration save/restore, upgrade management, time setting, etc. |
Management Function
CLI | Support serial command line management |
TELNET | Support serial command line management |
SSH | Support SSHv1/2 remote management |
SNMP | Support v1/2/3 |
WEB | Support two layers of settings |
PoE | POE Power management |
【Ordering Information】
Equipment model | Description |
SGD600-AFGM-SWG2086S | 8 Gigabit PoE Ports + 6 Gigabit SFP Port + 1 Console Port |

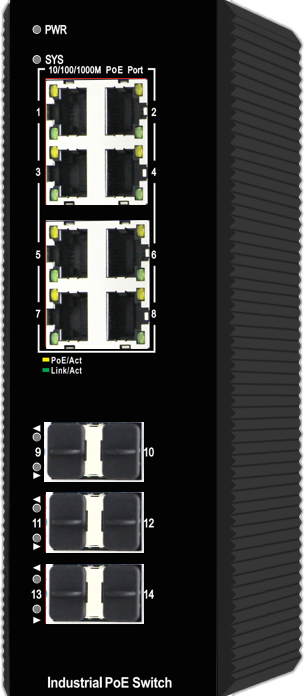

【Product Picture】
