Product Introduction:

FMC-GE-MMSM

Multi-mode to Single mode Converter

Product brief:

The FMC-GE-MMSM converter supports long wave 100Base-LX and short wave 100Base-SX fiber network convert. This media converter can be installed as a standalone unit or as a slide-in module to the 19" converter rack for use at a central wiring closet.

Purchasing guide for 100M/1000M optical transceivers

1.Fiber interface

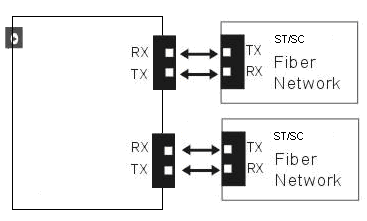

SC fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the two sets of optical transceiver are interfaced or connected to switchboard with fiber interface, the fiber is in cross connection, namely "TX-RX" "RX-TX".

2. Connection

The network device (work station, hub or switch) with The multi-mode (single mode) fiber is connected to SC/ST fiber interface of optical transceiver. Then switch on. The corresponding LED is on for correct connection. (See the table below for the LED indicator)

LED indicator indicates the working status of the transceiver for device monitoring and trouble display. The following is the explanation for each LED indicator.

Technical parameters:

1. Standard Protocol:

IEEE802.3  IEEE802.3u, IEEE802.3xIEEE802.3ab, IEEE802.3z

100Base-T/FX, 1000Base-X

2. : Data rate：

Electrical interface:

100/1000Mbps

Fiber interface: 155Mbps/1.25Gbps

3.connector:   SC/LC interface

4. Operation mode: full duplex mode or half duplex mode

5. Power supply parameter: outside: 5V DC 1A

6. Temperature: 0℃-70 ℃

7. Humidity: 5%-90%

8. Wavelength:

MM: 50/125, 62.5/125μm

SM: 8.3/125,8.7/125,9/125 or 10/125μm

9. Size:

95mm(W)×70mm(D)×26mm(H)

Cautions:

1. This production is suitable for indoor application.

2. Put on the dust cover of fiber interface when not used.

3. It is forbidden to stare at the TX fiber-transfer end with naked eyes.
