Product Introduction:

FMC-10G-OEO2212

10Gb/sOEO Converter

BriefIntroduction

10Gb/sOEO Converter.

This product is high-performance 10G optical signals repeaters, Using Optical - Electrical -Optical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiberby single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the

bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

Main Features

1. To meet the requirement for Metro optical networks or optical access network high-speed interconnect, and transparent transmission.

2. 850nm, 1310nm, 1490nm and 1550nm wavelength conversion, with EDFA optical amplification and dispersion management, to extend the transmission distance.

3. Supporting Jumbo frame

4. Support optical signal equilibrium amplification and clock extraction, optical data regeneration.

5. Support SAN, LAN, WAN, point to point transmission

6. Proved Multi-data to solve a variety of optical fiber resource constraints problem in network.

7. Transparent Transport and very low delay Support ITUT prescribed DWDM/CWDM wavelength.

8. Support hot plugging

9. Full State Led display

10. Easy installation

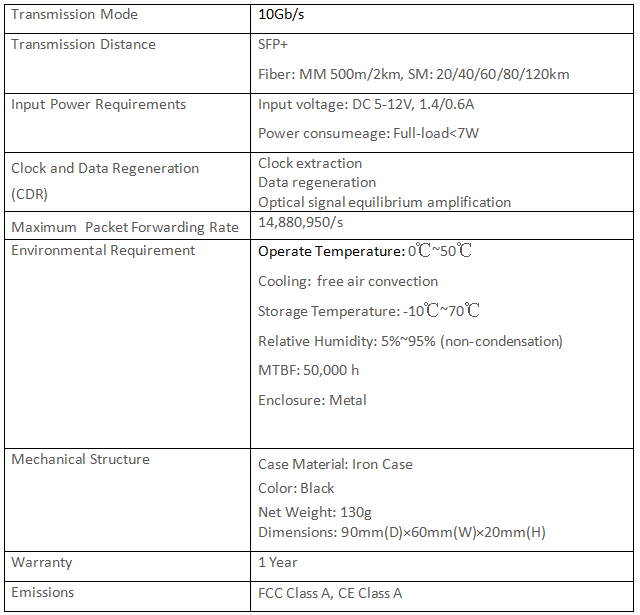

Specification
