Product Introduction:

The FMC-IGE series Media Converter complies with IEEE802.3z，IEEE802.3AB Standards. It is designed to convert data signal between 10/100/1000 Base-T and 1000Base-SX/LX/ZX Gigabit Ethernet.

The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmission capability. It supports 10/100/1000Base-T and 1000Base-SX/LX/ZX applications. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable. FMC-IGE is an ideal solution for “fiber to building” applications at

central offices or local sites. It supports MDI/MDIX auto detection, so you don’t need to use crossover wires. can work normally from -10 ~60℃ and accepts a wide voltage range from +12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh

operating environments.

Features

•Provides 1 x SFP (mini-GBIC) type connector (EKI-2741F)

• Provides 1 x 1000Base-SX or 1000Base-LX SC type connector (EKI-2741SX/LX)

• Provides 1 x 10/100/1000Mbps Ethernet ports with RJ-45 connector

• Supports full/half duplex flow control

• Supports MDI/MDI-X auto-crossover

• Supports surge (EFT) protection 3,000 VDC for power line

• Supports 4,000 VDC Ethernet ESD protection

• Embedded with a switch controller, supports auto-negotiation

• Supports store & forward transmission

• Supports redundant +12 ~ 48 VDC power input

• Provides flexible mounting: DIN-rail, Wall Mounting

• Built in high efficiency SRAM for packet buffer, with 1K-entry lookup table and 4-way associative hash algorithm.

• Supports operating temperatures from -40 ~ 75 ℃ (wide operating temperature model) or

-10 ~ 60 ℃ (standard model)

• Max.2046bytes packet at store-and-forward mode, Max.9K bytes packet at cut-through mode

• 10M/100M/1000M bit rate auto negotiation

Fiber Converters Module

The FMC-IGE provides you with one Fiber connector for your fiber optic cable

and one Ethernet RJ-45 port (Auto MDI/MDIX) for your 1000Base-TX copper cable

connection. There are two DIP-switches to set the operation mode for UTP, Fiber ports

and link loss forwarding function.

Dual Power Input

To reduce the risk of power failure, the FMC-IGE provide +12 ~ 48 VDC dual

power inputs. If there is power failure, FMC-IGE will automatically switch to the

secondary power input.

Advanced Protection

The power line of FMC-IGE supports up to 3,000 VDC EFT protection, which secure equipment against unregulated voltage and make systems safer and more reliable. Meanwhile, 4,000 VDC ESD protections for Ethernet ports make FMC-IGE more suitable for harsh environments.

Wide Operating Temperature

The operating temperature of the FMC-IGE is between -40 ~ 75 ℃ (wide operating temperature model) or -10 ~ 60 ℃ (standard model). With such a wide range, you can use the FMC-IGE in some of the harshest industrial environments that exist.

Specification

Communications

Support IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3z, IEEE802.1Q VLAN remark

Full-duplexes, half-duplex auto negotiation

10M/100M/1000M bit rate auto negotiation

Transmission Distance Fiber: up to 120km

Ethernet: Up to 100 meters (STP or UTP)

Transmission Speed Up to 1000 Mbps

Interface

Connectors Fiber : LC or SC

1 x RJ-45

6-pin removable screw terminal (power & relay)

LED Indicators TX port: 10/100/1000M, Link/Active

Fiber port: LNK/ACT

Port Alarm, LFP

Power

Power Consumption 5.28 W

Power Input 2 x Unregulated +12 ~ 48 VDC

Fault Output 1 Relay Output

Mechanism

Dimensions (WxDxH) 37 x 95 x 140 mm

Enclosure IP30, Metal shell with solid mounting kits

Mounting DIN-rail, wall

Protection

ESD (Ethernet) 4,000 VDC

Surge (EFT for power) 3,000 VDC

Reverse Polarity Yes

Overload 0.9A@12VDC (25 ℃)

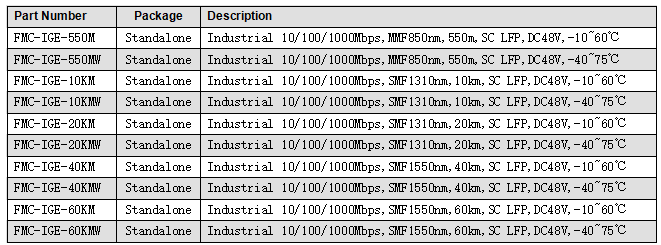

Order information
