Product Introduction:

FMC-IFE series

Industrial Ethernet Media Converter

The FMC-IFE series is 10/100M Fast Ethernet optics fiber industrial media converter, designed to convert a twisted-pair 10/100BASE-TX Ethernet networks cable to 100BASE-FX fiber networks cable.The

advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions. Therefore, FMC-IFE is an ideal solution for “fiber to building” applications at central offices or local sites. It extends network data transmission distances beyond the 100 meters limitation distances of copper wire up to 120 kilometers fiber optic. The 10/100BaseTX-to-FX Media Converter is typically used to connect Fast Ethernet devices, such as 100Base-TX Hubs, at long distance. The 100BaseTX-to-FX Media Converter will connect servers or workstations located up to 120 kilometers from each other

FMC-IFE supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the FMC-IFE can work normally from -10 ~ 60° C and accepts a wide voltage range from +12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.

Features

1) Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector

2) Provides 1 x 100 Mbps multi-mode/single-mode SC type fiber port

3) Provides internal jumper for Link Fault Pass-through (LFP) setting

4) Supports full/half duplex flow control

5) Supports store and forward transmission

6) Supports auto-negotiation

7) Supports MDI/MDI-X auto crossover

8) Provides surge (EFT) protection 3,000 VDC for power line

9) Supports 4,000 VDC Ethernet ESD protection

10) Supports redundant +12-48 VDC power input

11) Provides flexible mounting: DIN-rail & Panel Mounting

12) Supports wide Operating Temperature from -40 ~ 75° C

13) The 10/100M media convertercards can realize Max.2046bytespacket at store-and-forwardmode,Max.9Kbytespacketat cut-throughmode

14) Mediaconvertersupports protocolslikeQ-in-QDoubleTagVLAN,IEEE802.1qTagVLANand

IEEE802.3xFlowcontrol

Specifications

Support standard IEEE802.3x, IEEE 802.3 10 Base-T, 802.3u 100Base-TX, 100Base-FX protocols

Support10Base-T,100Base-TX,100Base-FX

Transmission Distance Ethernet: Up to 120 km

Transmission Speed Up to 100 Mbps

Interface Connectors: 1 x RJ-45, 1 x SC type fiber connector and 6-pin removable screw terminal (power)

Power

Power Consumption Max.5W

Power Input 2 x Unregulated 12 ~ 48 VDC

Mechanism

Dimensions (W x H x D) 37 x 140 x 95 mm

Mounting DIN-rail, Wall

Protection

ESD (Ethernet) 4,000 VDC

Surge (EFT for power) 3,000 VDC

Environment

Operating Temperature -10 ~ 60° C (14 ~ 140° F) Wide Temp. model -40 ~ 75° C (-40 ~ 167° F)

Storage Temperature -40 ~ 85° C (-40 ~ 185° F)

Operating Humidity 5 ~ 95% (non-condensing)

Storage Humidity 0 ~ 95% (non-condensing)

MTBF 577,175 hrs

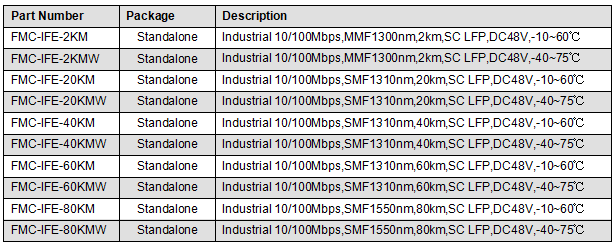

Order Information
