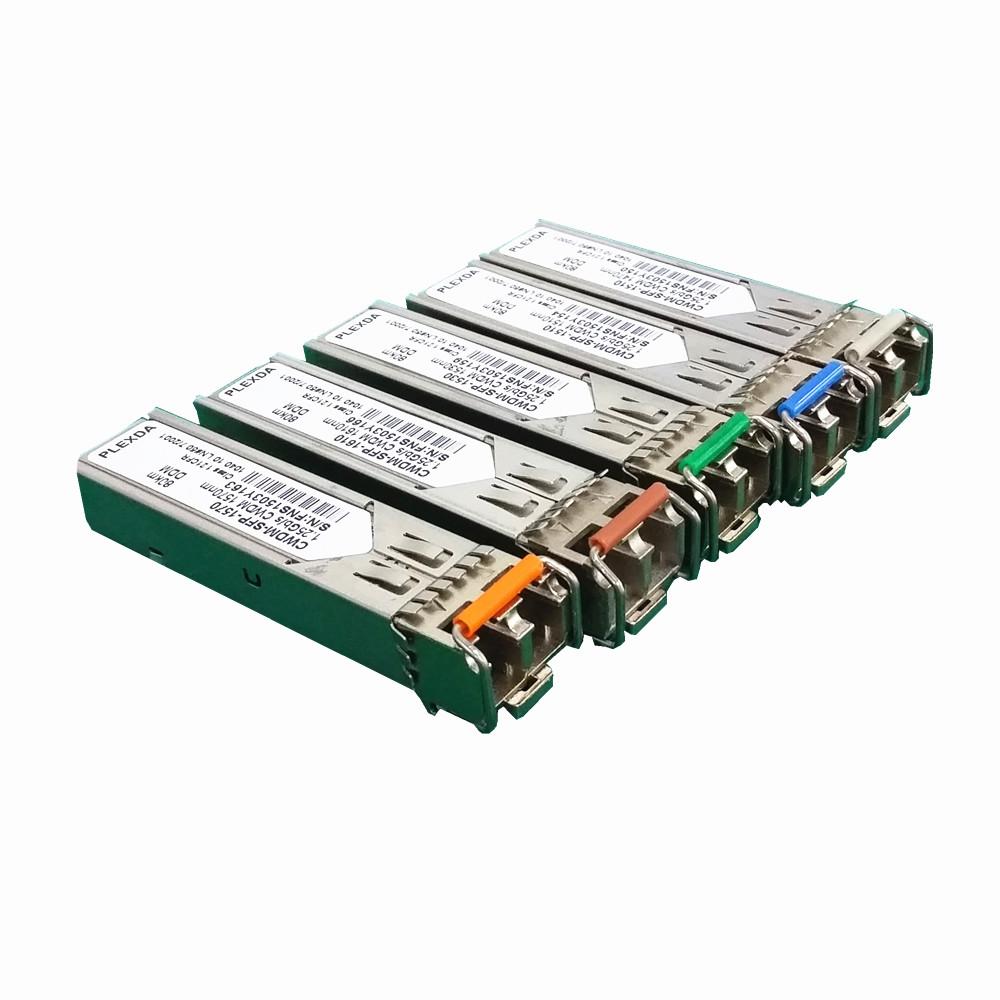

Product Introduction:

The FWDM-1624series singlemodetransceivers is smallform factorpluggable moduleforbi-directionalserialopticaldatacommunicationssuchas SONET OC48/SDH STM-16 GigabitEthernetandFiber Channel 1x/2x SM-LC-L FC-PI. It is with the SFP 20-pin connectortoallowhotplugcapability.Thismoduleisdesignedforsinglemodefiber and operatesata nominal wavelength of CWDM wavelength. There are eighteen center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. A guaranteedminimumoptical link budgetof24dBis offered.

ThetransmittersectionusesamultiplequantumwellCWDMDFBlaserandisaclass1lasercompliantaccordingtoInternationalSafetyStandardIEC-60825.Thereceiver sectionusesanintegratedInGaAsdetectorpreamplifier(IDP)mountedinanoptical header andalimitingpost-amplifier IC.

Features

Operatingdatarateupto 2.5Gbps

18-WavelengthCWDMDFB LDTransmitter from 1270nmto1610nm,withstep20nm

18 dBPower Budgetat Least

Single 3.3VPower supplyandTTLLogic Interface

DuplexLC Connector Interface

HotPluggable

Operating CaseTemperature

Standard:0 ~+70

Industrial:-40 ~+85

CompliantwithMSASFPSpecification

Digital diagnostic monitor interface

CompatiblewithSFF-8472

Applications

GigabitEthernetSwitches and Routers

1x/2x Fiber Channel Switch Infrastructure

XDSLApplications

MetroEdgeSwitching

SONET OC48/SDH STM-16

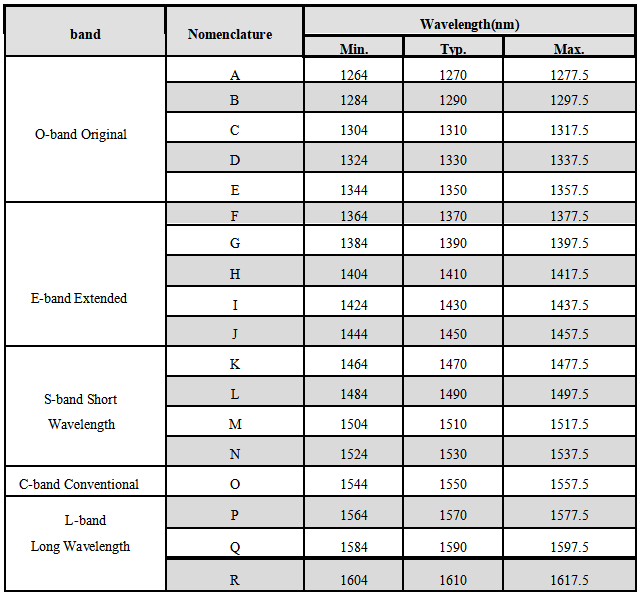

CWDM Wavelength

CWDM*:18Wavelengthsfrom1270nmto1610nm,eachstep20nm.

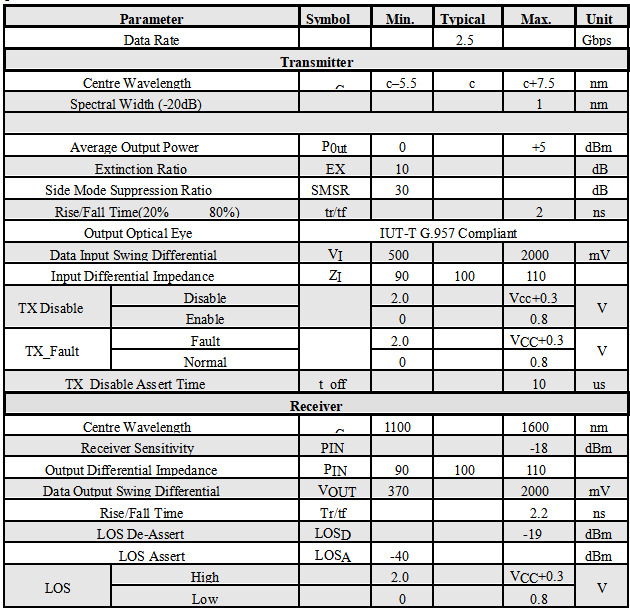

Specification

Order Information
