Product Introduction:

The FWDM-1612 series single mode transceivers is small form factor pluggable module for bi-directional serial optical data communications such as Gigabit Ethernet 1000BASE-ZX  and Fiber Channel 1x SM-LC-L FC-PI. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and  operates  at  a  nominal  wavelength  of  CWDM  wavelength.  There  are  eighteen center  wavelengths  available  from  1270  nm  to  1610  nm,  with  each  step  20  nm.  A guaranteed minimum optical link budget of 24 dB is offered.

The transmitter section uses a multiple quantum well CWDM DFB laser and is a class1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Features

Operating data rate up to 1.25Gbps

18-Wavelength CWDM DFB LD Transmitter from 1270 nm to 1610 nm, with step 20 nm

24 dB Power Budget at Least

Single 3. 3V Power supply and TTL Logic Interface

Duplex LC Connector Interface

Hot Pluggable

Operating Case Temperature

Standard: 0 ~+70

Industrial:-40 ~+85

Compliant with MSA SFP Specification

Digital diagnostic monitor interface

Compatible with SFF-8472

Applications

Gigabit Ethernet Switches and Routers

Fiber Channel Switch Infrastructure

XDSL Applications

Metro Edge Switching

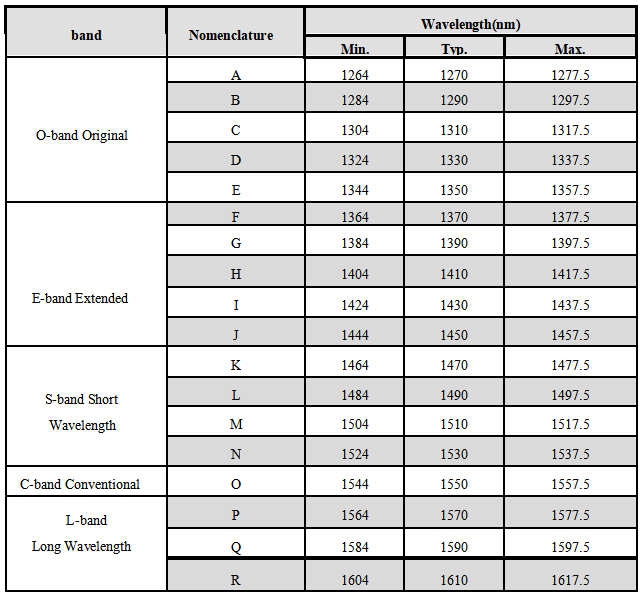

CWDM Wavelength

CWDM*:18Wavelengthsfrom1270nmto1610nm,eachstep20nm.

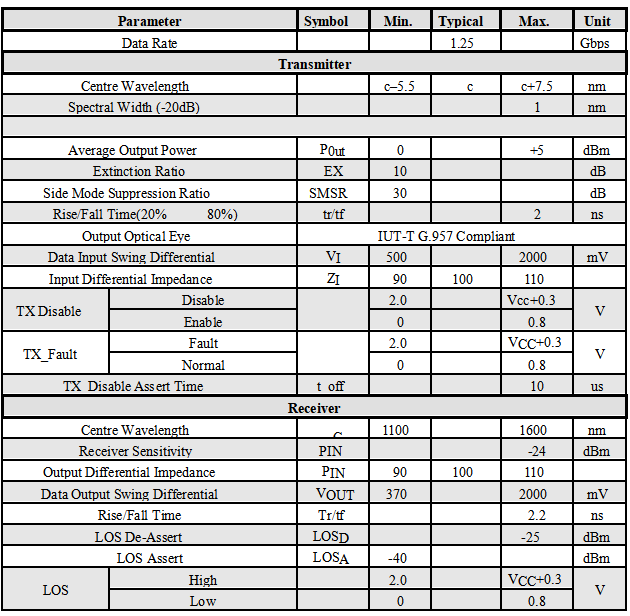

Specification

Order Information
