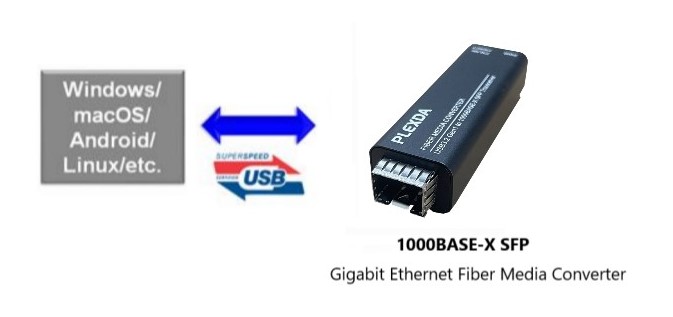

Product Introduction:

FMC-GUSB-SFP seies

USB3.2 Gen1 to 1000BASE-X(SFP)

Gigabit Ethernet Fiber Media Converter

Overview

The FMC-GUSB-SFP seies Media Converter complies with USB3.2 Gen1,V3.0,V2.0 and V1.1 specification, compatible with IEEE802.3z, IEEE802.3ab Standards It is designed to convert data signal between USB 3.2 Gen1 and 1000Base-X(SFP) Gigabit Ethernet. It is a high performance and highly Integrated,low cost and simple plug-and-play Gigabit Ethernet fiber network connection capability for desktops, notebook PC’s, Ultra book’s, docking stations, game consoles, digital-home appliances, and any embedded system using a standard USB port.

It supports USB to optic network LAN 1000Base-X applications. The data signal converted by such high performance media converter can be transmitted up to 100km maximum by single-mode 9/125um fiber-optical cable from USB 3.0 cable.

The Converter is one SFP, one USB-A or TYPE-C Jacks. LEDs indicators are built-in for easy diagnosing and monitoring the status, it is mini designed for easy install and application, it’s supports Windows 10/8.x, Linux/Android /Chrome OS, Nintendo Switch in-box drivers, and macOS/Linux native CDC-NCM driver for driverless, auto-detect Plug & Play.

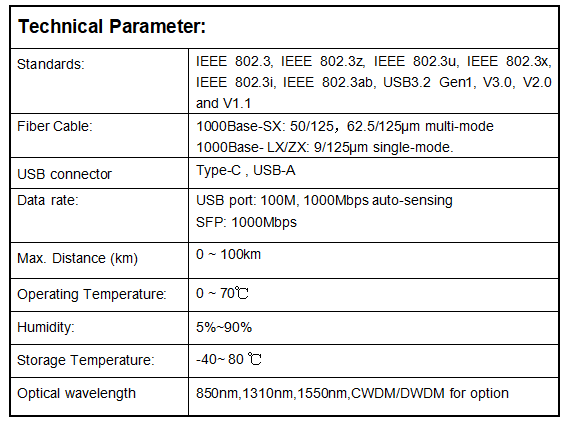

Specifications:

Mechanical Parameters

Features:

USB Interface

1. Compliant to USB Spec 3.2 Gen 1, 3.0, 2.0 and 1.1

2. Supports all USB 3.2 Gen 1 power saving modes (U0, U1, U2, and U3)

3. Supports USB Super/High/Full Speed modes with Bus-power or Self-power device

Gigabit Ethernet Optical Interface

1. Support the IEEE802.3 fast Ethernet standard (10Mbps)

2. Support the IEEE802.3u Fast Ethernet standard(100Mbps)

3. Support the IEEE802.3ab and IEEE802.3z Gigabit Ethernet standard (1000Mbps)

4. Supports CDC-NCM, CDC-ECM

5. Supports IEEE 802.3az (Energy Efficient Ethernet, EEE)

6. Supports AUTO-MDIX, flow control (IEEE 802.3 Annex.31B)

7. Supports IPv4/IPv6 Packet,checksum Offload Engine (COE)

8. Supports TCP Large Send Offload V1/V2

9. Supports Max.9k bytes packet at cut-through mode, Max.2046bytes packet at store-and-forward mode.

10. Supports IEEE 802.1Q VLAN tagging and 4096 VLAN ID filtering; received VLAN tag (4 bytes) can be

    stripped off or preserved

11. Supports IEEE 802.1P Layer 2 Priority Encoding and Decoding

12. Supports manageability L2 filter

13. Supports TCO filter, L3/L4 IP/Port filter

14. Supports Second DA RX filter with bit mask

15. Very lower BER rate, <1/1000000000

Wake-on-LAN Functions

1. Supports suspend mode and remote wakeup via link-change, Magic Packet, Microsoft wakeup frame

and external wakeup pin

2. Supports Bonjour Wake-on-Demand

3. Supports Wakeup Packet Indication

4. Supports Microsoft Modern Standby

PTP (Precision Time Protocol)

1. Supports IEEE 1588v2 and 802.1AS

2. Supports Windows 10/8.x, Linux/Android /Chrome OS, Nintendo Switch in-box drivers, and

macOS/Linux native CDC-NCM driver for driverless, Plug & Play

3. Supports embedded eFuse for die identifier and store the USB Device Descriptors, Node-ID, etc.

4. Supports SPI Flash for firmware customization

Applications

1. Notebook/Laptop Onboard LAN

2. USB Ethernet Dongle for Ultrabook /Table/Smart Phone/etc.

3. Docking Station, POS/PDA Cradle

4. IP STB, Smart Camera, Smart TV Box

5. Game Console

6. 5G/LTE Router/Gateway

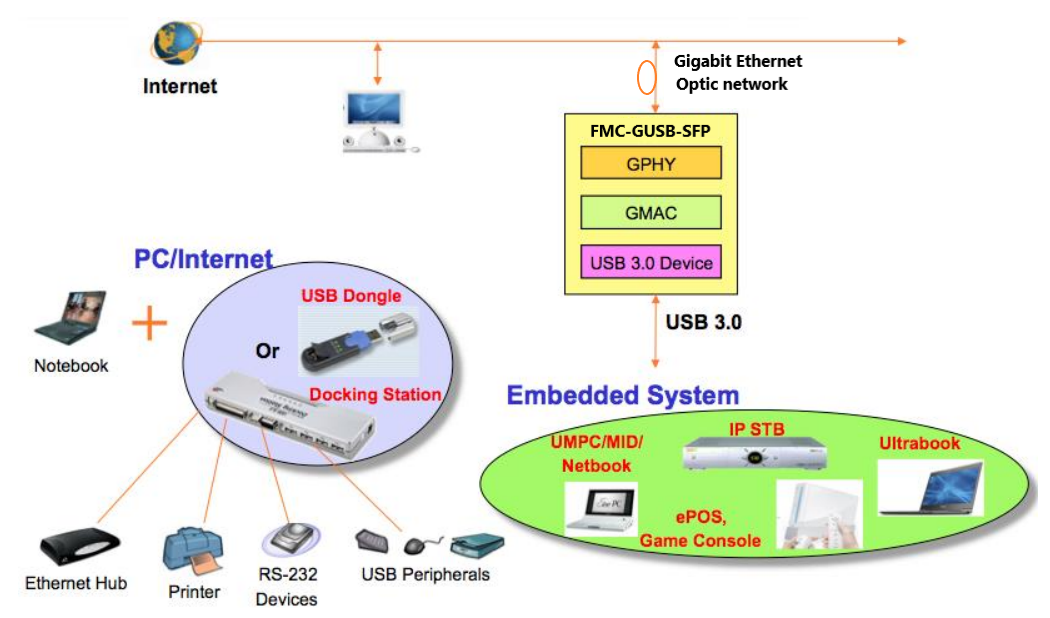

Application Diagram

SuperSpeed USB-to- Optic Network LAN Applications

Interface

USB3.2 Gen1 interface

The transmission media adopts USB3.2 Gen1 9 cores in 1 cable with Type-C or USB-A connector. It features the function of automatically identifying the Windows 10/8.x, Linux/Android /Chrome OS/mac OS operate system.

Fiber interface

LC fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the two sets of optical transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely "TX-RX", "RX-TX" (direct butting for single optical fiber).
