Product Introduction:

1.Description

MO-D210 is used for the communication between the CCUs and to the IPU in a CIS. It is Connected directly to the COM boards of the CCU using the own 12V power supply via RS232 connection. It can also work as standalone with separate power supply.

MO-D210 is used in pairs, a transceiver is connected to each COM cards of a CCU. The distances the transceiver can be used is between 1m and 40km,but for shorter distances than 100m an attenuator has to be used.

2. Characteristic

2.1 Charateristics for power connection

Voltage:12VDC (Via +12V at pin9 DGND at pin7 of DB25)

Current:150Ma

Alternative Power supply  (110VAC~230VAC, Via external power supply)

2.2 Charateristics for fibre optic connection

Laser:FP-laser,class 1

Wavelength:1310nm

Connector:SC

Fibre:SM

Distances of the transceiver:1m(min) to 40km(max)

Bit rate:125Mbit/s

System budget: 30dB

2.3 Charateristics for RS232 connection

Number of channels:4 full duplex

Data speed:Up to 115kBaud per signal/channel

Type of connection:25 pin D-sub Female

Transmission type: Synchronous

2.4 Dimensions,material and environment

Material: Anodised sheet metal

Dimensions: 20mm(H)*60mm(W)*85mm(D)

Relative humidity: 5-96%RH

Temperature:-40 to +70℃

3.APPEARANCE

3.1 LEDS

ON: Indicaters power.

ACT: Traffic ACTive.Indicates traffic/

LINK: Lit when the transceiver has established traffic (hand shaked) with the next receiver.

3.2 Connections

It has the following connections:

External power

Fiber optic

RS232

4. Application

      Figure 1. Using a transceiver between two COM card

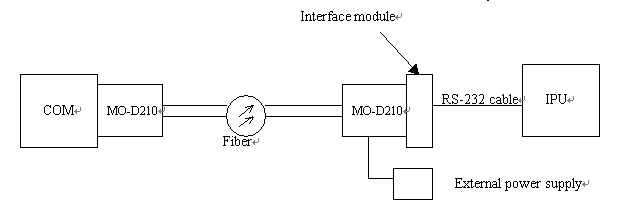

 Figure 2. When connecting the transceiver to an IPU, an

interface module shall be used

5. Terminology

  Term            Explanation

  CCU            Communication Controller Unit

  CIS             Central Interlocking System

  COM           COMmunication card

  FP-laser         Fabry-Perot laser.

  IPU            Interlocking Processing Unit

  SM            Single mode fiber
