Product Introduction:

SGD-SWG1050

5-Port Gigabit Intelligent Ethernet Switch

【Introduction】

The 5-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 5 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, supports three working modes, one-key smart simple switching working mode, easy to manage and maintain, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.

【Main Features】

5*10/100/1000M RJ45 Ports

Apply to IEEE802.3、IEEE802.3u、IEEE802.3ab standard

Ethernet port supports 10/100/1000M adaptive

Support auto MDI/MDIX

Panel indicators to monitor working status and help fault analysis

One-key smart switch, supports  VLAN, Default, Extend three modes

Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

Support loop alarm

【Application Environment】

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

【Specifications】

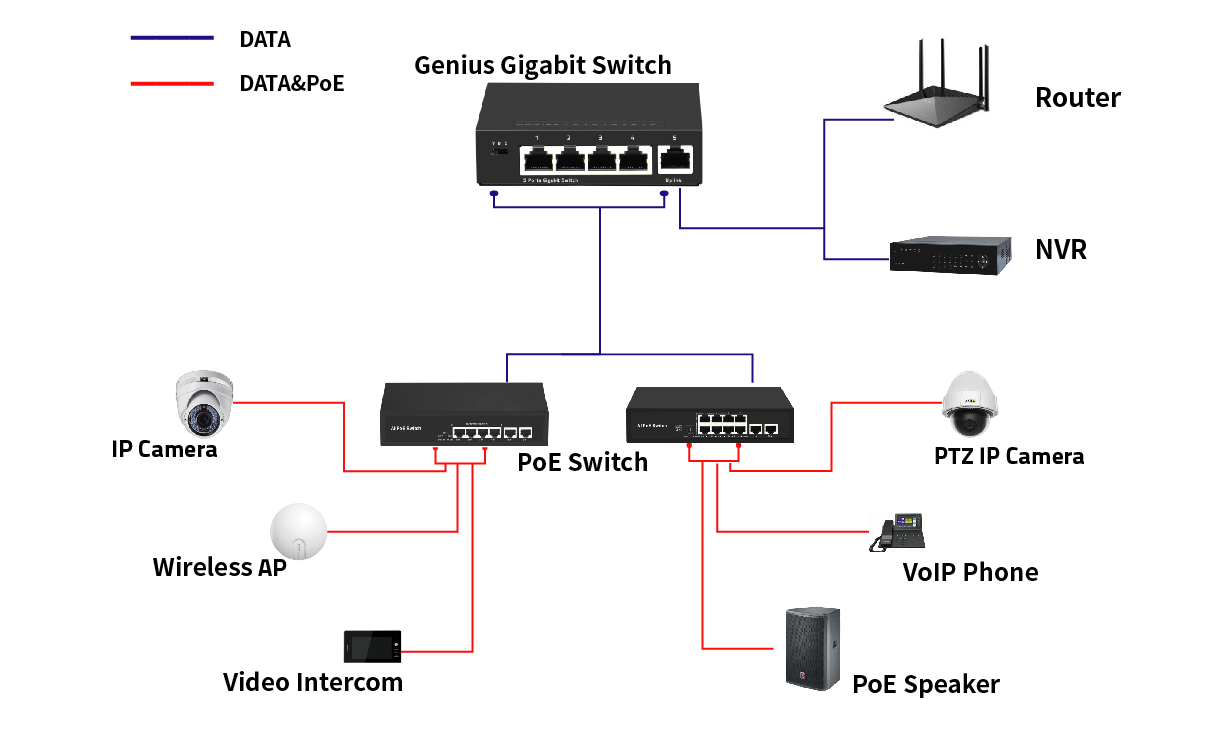

【Application】

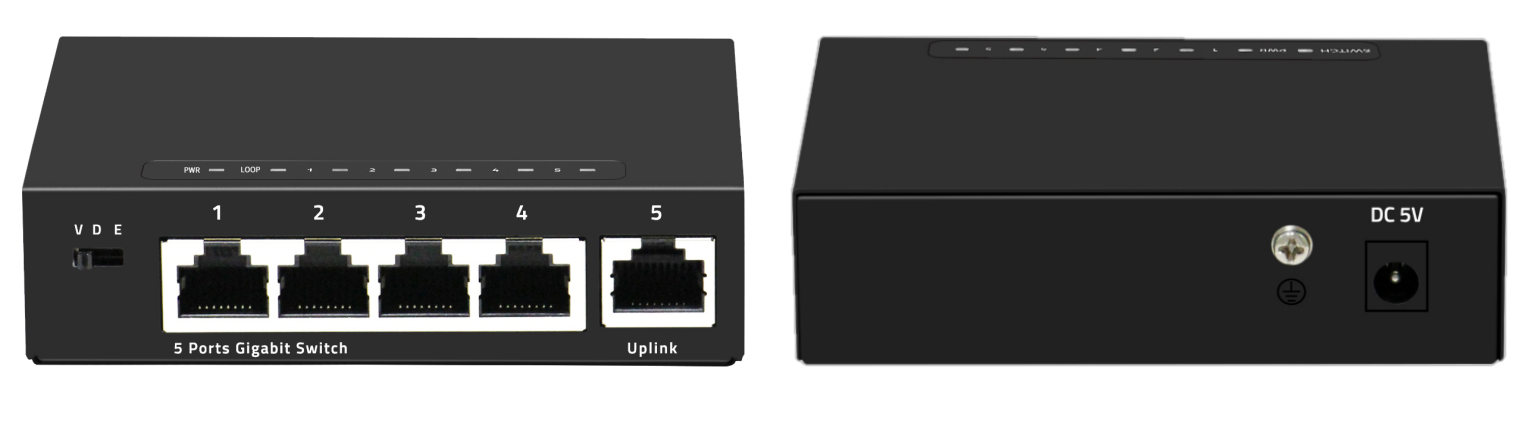

【Product Picture】
