Product Introduction:

SGD901-AFG-82NS

10 Port 10/100/1000M PoE Switch

【Introduction】

10-Ports 10/100/1000M PoE Switch with 8*10/100/1000M PoE Ports + 2*1000M SFP Port, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

   PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone, wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.

   With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.

【Main Features】

8*10/100/1000M PoE Ports + 2*1000M SFP Port ;

Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab,  IEEE802.3z standards;

Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);

Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;

Support port auto flip (Auto MDI/MDIX);

Exchange mechanism using store-and-forward;

All ports support wire-speed switching;

Automatically supplied to adaptive devices;

Panel indicator monitoring status and help failure analysis.

【Application Environment】

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

【Specifications】

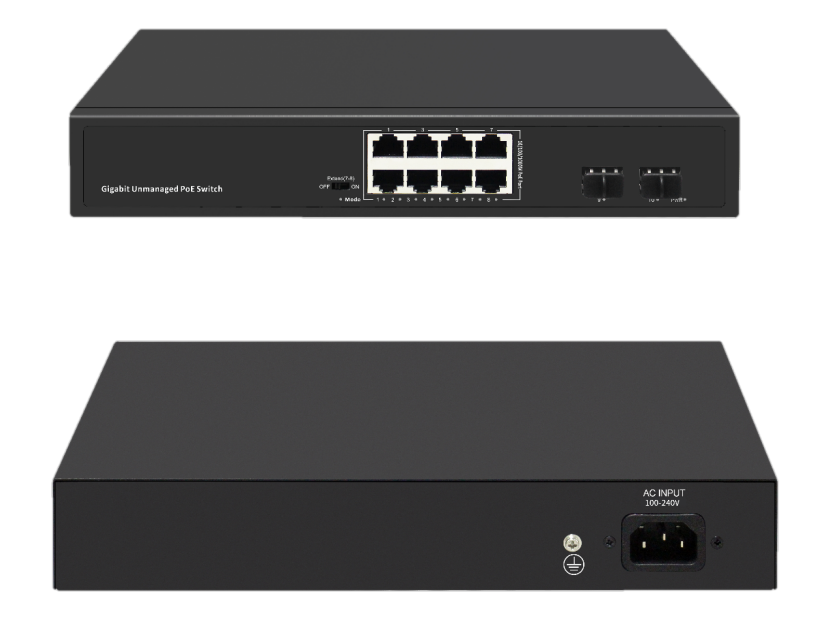

【Product Picture】

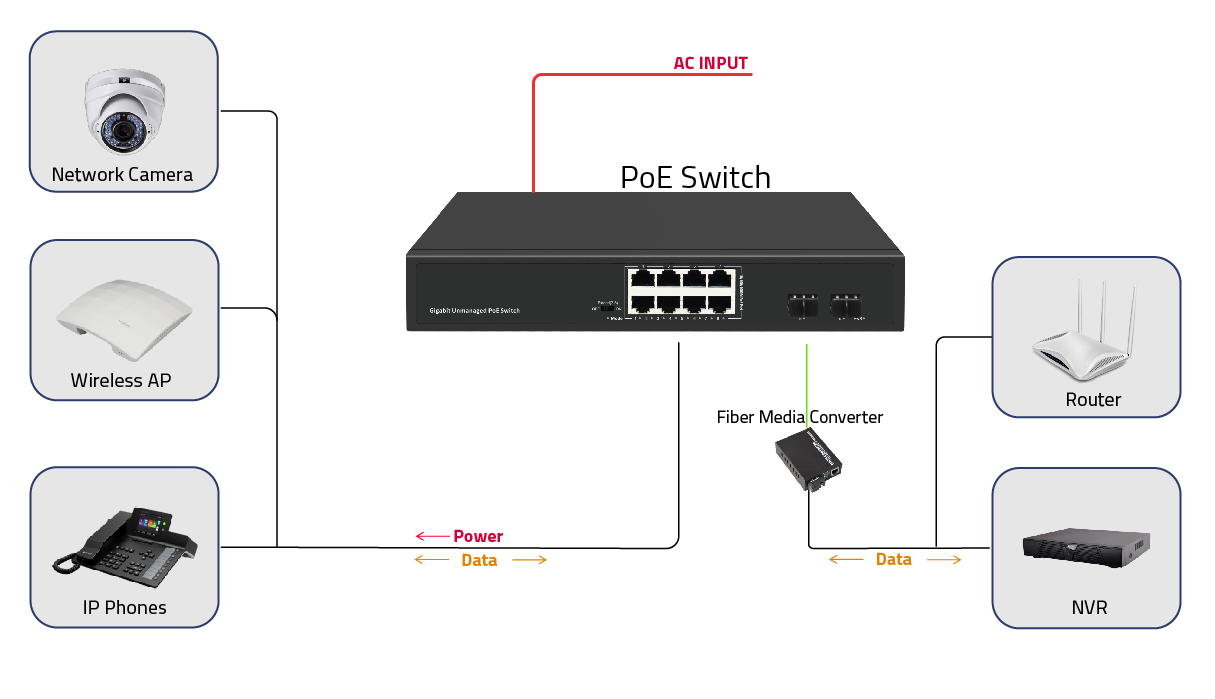

【Application】
