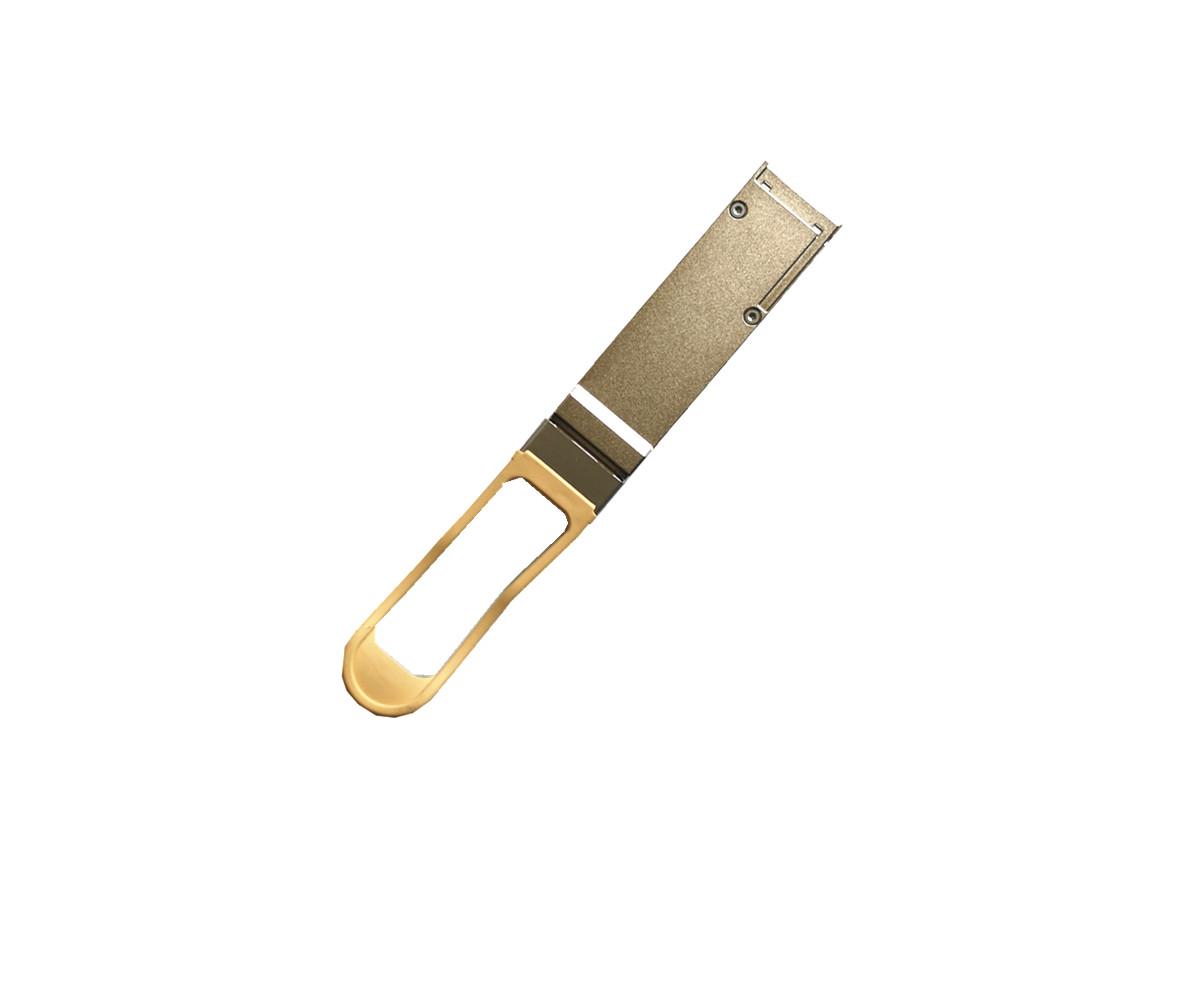

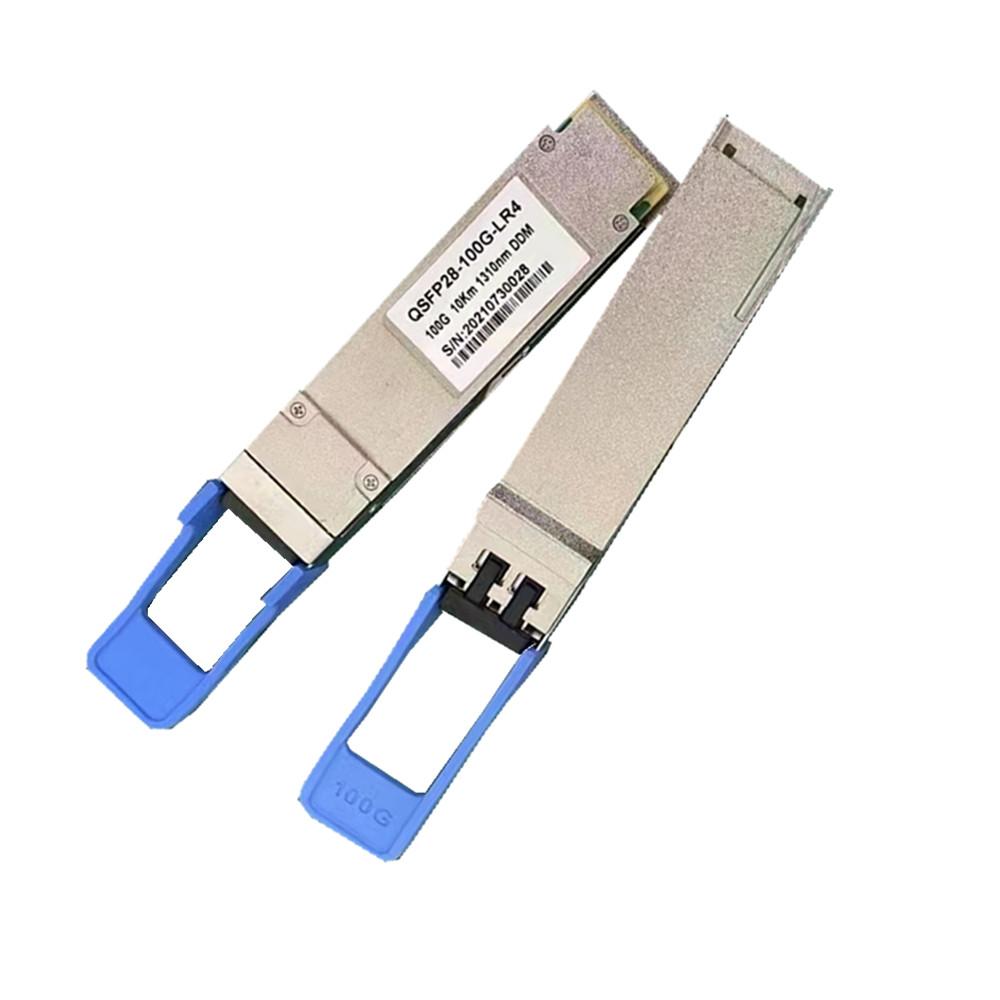

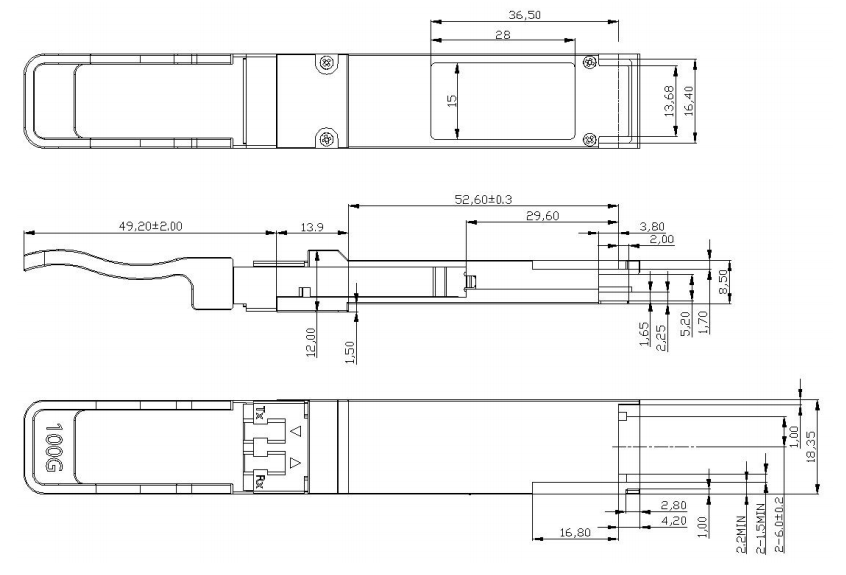

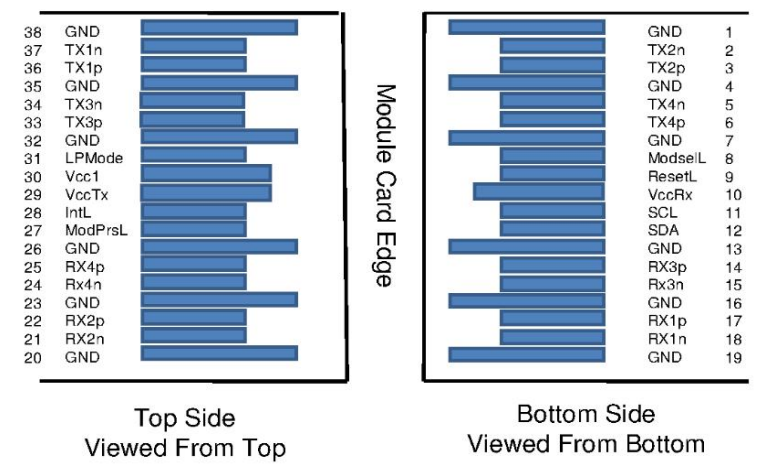

100Gbps 10km LC QSFP28 LR4 Optical Transceiver QSFP-100G-LR4

100G QSFP28 LR4 integrates four transmitter and receivers into one module. In the transmitter side, the four lanes of optical data channels are optically multiplexed by the integrated optical multiplexer. In the receive side, the four lanes of optical data channels are optically de-multiplexed by the integrated optical de-multiplexer. Each data channels are recovered by a PIN photo-detector and trans-impedance amplifier, retimed. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba.

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Tc	0		70	℃
Power Supply Voltage	Vcc	3.13	3.3	3.47 V	V
Supply Current	Icc			1.12	A
Module total power	P			3.5	W
Each Channel Data Rate	BR		25.78125		Gbps
SMF per G.652 Lmax				10 km

Note1.We guarantee that the shell temperature meet the 0~70℃, environment temperature may be lower than 70℃ when module operating.

100GBASE-LR4 Operation

Optical Transmitter Characteristics

Parameter	Symbol	Min	Typ	Max	Unit	Notes
Signaling rate per lane		25.78125 ± 100 ppm			GBd	1
Lane center wavelengths(range)	CH0	1294.53		1296.59	nm
	CH1	1299.02		1301.09
	CH2	1303.54		1305.63
	CH3	1308.09		1310.19
Total Average Launch Power	Pout			10.5	dBm
Transmit OMA per Lane	TxOMA	-1.3		4.5	dBm
Average Launch Power per Lane	TXPx	-4.3		4.5	dBm
Extinction Ratio	ER	4			dB
Sidemode Suppression ratio	SMSR	30			dB
Relative Intensity Noise	RIN			-130	dB/Hz
Transmitter Reflectance Reflectance				-12	dB
Transmitter eye mask Definition {X1, X2, X3, Y1, Y2, Y3}		{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}				2

Optical receiver Characteristics

Parameter	Symbol	Min	Typ	Max	Unit	Notes
Signaling rate per lane		25.78125 ± 100 ppm			GBd	3
Lane center wavelengths(range)	CH0	1294.53		1296.59	nm
	CH1	1299.02		1301.09
	CH2	1303.54		1305.63
	CH3	1308.09		1310.19
Average Receive Power per Lane	RXPx	-10.6		4.5	dBm	4
Receiver Sensitivity (OMA) per Lane	Rxsens			-8.6	dBm
Receiver Reflectance	TXPx	-4.3		-26	dB
LOS Optical De-assert	Pd			-11.6	dBm
LOS Optical Assert	Pa	-24			dBm
LOS hysteresis		0.5			dB
